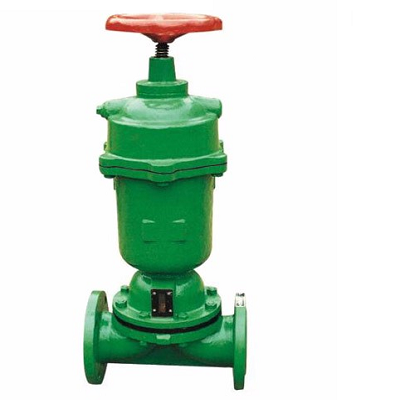

Pneumatic Diaphragm Valve, Ductile Iron, EPDM Lined, DN40

This Pneumatic Diaphragm Valve features a durable ductile iron body with a corrosion-resistant EPDM lining, ensuring reliable performance in demanding fluid control applications. Sized at DN40 (1-1/2 inch) and rated for PN10 (Class 150 LB) pressure, it comes with RF flanged ends for secure pipeline connections. Ideal for water treatment, chemical processing, and general industrial use, this valve offers efficient, automated flow control with low maintenance requirements.

Product Name: Pneumatic Diaphragm Valve
Body Material: Ductile Iron
Lining Material: EPDM
Size: DN40, 1-1/2 Inch
Pressure: PN10, Class 150 LB
End Connection: RF
Operation: Pneumatic Actuator
Temperature Range: -29°C to 80°C

The diaphragm valve is specifically designed to control non-corrosive or general corrosive media, offering a unique structure where the valve body is either unlined or lined with various rubber options to suit different working temperatures and fluid pipelines. The variety of available lining materials provides excellent corrosion resistance for various media. The diaphragm valve's construction separates the valve body and the cover with an intermediate diaphragm, ensuring that the valve cover and stem parts above the diaphragm are protected from erosion caused by the media. As a special form of globe valve, the diaphragm valve is ideal for applications requiring precise control and protection from corrosive fluids.

Standards Compliance and Design Features

» Size Range: 3/4-16 Inch
» Pressure Ratings: ANSI Class 125, 150 LB, PN6, PN10, PN16
» Standards Compliance: MSS SP-88, BS 5156, ASME B16.34, DIN 3202, ASME B16.1, BS EN 558, ASME B16.5 CL150, EN 1092, EN 12226, ISO 5208, API 598, BS 4504, or equivalents.
» Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, or Other Special Materials
» Optional Lining Materials: Natural Rubber, Butyl, EDPM, Hard Rubber, and more
» End Connections: Flanged RF or FF, Screwed
» Optional Features:
Locking Device
Position Indicator
Direct Mounting to ISO 5211
» Bore: Regular Bore
» Actuation: Handwheel, Electric, or Pneumatic Operated
