Pneumatic Actuated Pinch Valve, ASTM A126 B, 6 Inch, 150 LB

Product Name: Pneumatic Actuated Pinch Valve
Body Material: Gray Iron ASTM A126 Class B
Sleeve Material: Rubber
Size: 6 Inch, DN150
Pressure: Class 150 LB, PN20
End Connection: Flanged
Operation: Pneumatic Actuator

Our pinch valves are ideal for shut-off or control applications involving abrasive or corrosive slurries, powders, or granular substances. Our advanced flow control solutions meet even the most demanding customer specifications. Pinch valves enhance productivity by improving process efficiency and extending service intervals. The valve design consists of three main components: the sleeve, the body, and the actuator. The sleeve is the only part in contact with the process medium. The construction and materials of all three components can be selected to suit most process conditions. Pinch valves provide 100% tight shut-off, even if solids have accumulated on the sleeve wall. When compressed, any crystallized particles flake off the sleeve surface and are washed downstream.

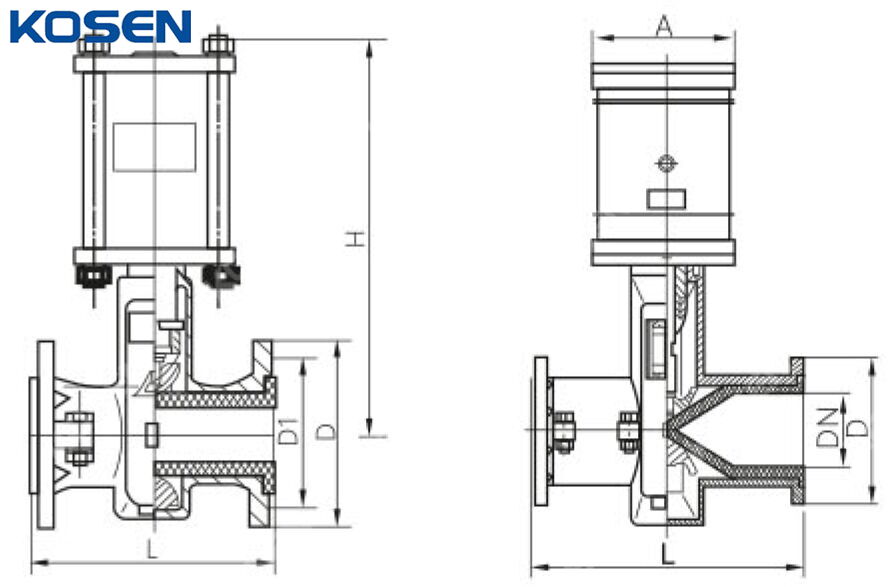

Technical Specifications

Normal Size Range: 1–16 Inch (DN25–DN400)
Normal Pressure Rating: PN10-PN16, Class 150 LB
Body Materials: Aluminium Alloy, Stainless Steel, GG25, GGG40, ASTM A216 WCB
Sleeve Materials: Natural Rubber, EPDM
Connection: Flanged
Operation: Handwheel, Bevel Gear, Pneumatic, Electric
Temperature Range: -29°C to 85°C
Medium: Slurry, Abrasive, Dust
