PFA Lined Magnetic Drive Pump, SS 304/316/316L, 8-50 m Head

Product Name: PFA Lined Magnetic Drive Pump
Product Type: IMC Magnetic Drive Pump
Diameters: DN12-DN125 mm
Pump Material: Cast Steel, SS 304, SS 316, SS 316L
Head: 8-50 m
Flow: 1.8-100 m3/h
Speed: 2900 r/min
Motor Power: 0.12-45 kw
Working Temperature: -20°C to 100°C
Other: The voltage is optional as required by the customer

Fluorine Lined Magnetic Pump Description

The IMC Fluorine Magnetic Pump is engineered for high-performance fluid handling in demanding environments, utilizing F46 molded material for superior corrosion resistance, mechanical strength, and longevity. With no mechanical seals, the pump offers a leak-free design, ensuring that it is ideal for transferring highly corrosive, high-purity chemicals. Its components are made from advanced materials such as F46, silicon carbide, and fluorine rubber, while the ductile iron pump casing provides exceptional mechanical strength and durability. This pump is widely used in industries like chemicals, pharmaceuticals, electroplating, petroleum, and environmental protection, particularly for applications such as pickling. Its design and performance meet the GB/T 25140-2010 standards for sealless rotary power pumps.

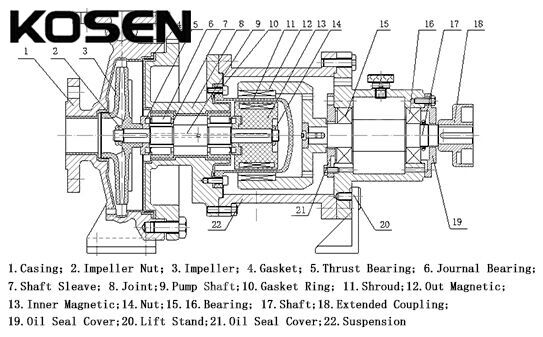

Fluorine Lined Magnetic Pump Features

» High-Quality Materials: The pump liners, impeller rotor, and isolation units are made of pure F46 molded material, ensuring no impurities precipitation, making it ideal for transporting high-purity, highly corrosive chemical liquids.

» Durable Pump Casing: Constructed with ductile iron, the pump casing is designed to withstand heavy loads and comply with national flange standards, providing excellent mechanical strength and supporting pipeline weight effectively.

» Superior Hydraulic Performance: The flow components lined with F46 offer smooth surfaces, reducing hydraulic friction loss, improving efficiency, and enhancing overall performance.

» High Wear and Corrosion Resistance: The shaft, bearing sets, and movement rings are made from sintered silicon carbide, a material known for its exceptional hardness, wear resistance, and corrosion resistance.

» Efficient Heat Management: The bearing housing features a unique spiral groove design, ensuring better lubrication of the plain bearings and efficient dissipation of heat generated during pump operation.

» Enhanced Pressure Resistance: The isolation units are made of PPS-reinforced cover material, providing the pump system with the ability to withstand higher pressures while minimizing heat buildup caused by magnetic eddy currents.

» High-Efficiency Magnetic Coupling: The pump uses external NdFeB magnets, offering up to 3600 Gauss magnetic field strength, ensuring smooth torque transfer from the prime mover to the impeller. This design prevents rotor and impeller contact, protecting fluorine plastic components from friction heat and ensuring safe operation in highly corrosive environments.

» Easy Maintenance: The pull-type structure of the pump allows for easy internal inspections and part replacements without the need to dismantle the pipeline, simplifying maintenance and reducing downtime.
