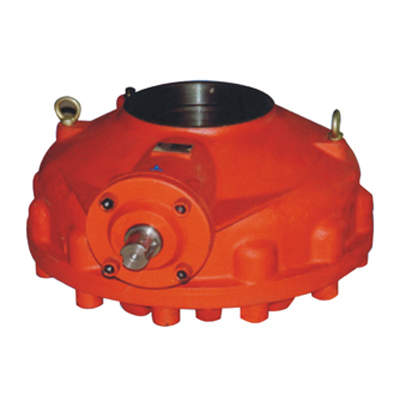

Multi-Turn Bevel Gearbox, DI, Carbon Steel, 360 – 6,000 Nm

Name: Multi-Turn Bevel Gearbox, DI, Carbon Steel, 360 – 6,000 Nm
SKU: KV-20250217-OV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The China Multi-Turn Bevel Gearbox features a durable construction with options in ductile iron and carbon steel materials. Designed to handle maximum torques ranging from 360 Nm to 6,000 Nm, it is suitable for both rising stem and non-rising stem applications. This gearbox provides smooth and precise control in valve actuation, making it ideal for use in various industrial settings requiring reliable torque transmission and high-performance operation.

Request a quote

Detail Information

Product Name: Multi-Turn Bevel Gearbox
Main Materials: Ductile Iron, Carbon Steel (Customizable)
Maximum Thrust Range: 43,000 N – 630,000 N
Maximum Torque Range: 360 Nm – 6,000 Nm
Stem Design Options: Rising Stem or Non-Rising Stem
HS Code: 8483 40 90 90
Features:
» Unique top entry replaceable stem nut
» Self aligning radial and thrust spherical roller bearings

The BA series gearboxes are designed to efficiently operate Gate and Globe valves, Sluice gates, and other valve types that require linear motion for thrust and torque applications. These bevel gearboxes enhance torque and mechanical advantage, ensuring smooth and effective valve operation. The BA series gearboxes complement Acrodyne's range of actuators, offering cost savings by enabling the use of a smaller electric actuator. Available in both manual and motorized versions, the manual gearbox is operated via a handwheel, with various size options. The motorized version allows direct mounting to an electric actuator for seamless integration and operation.

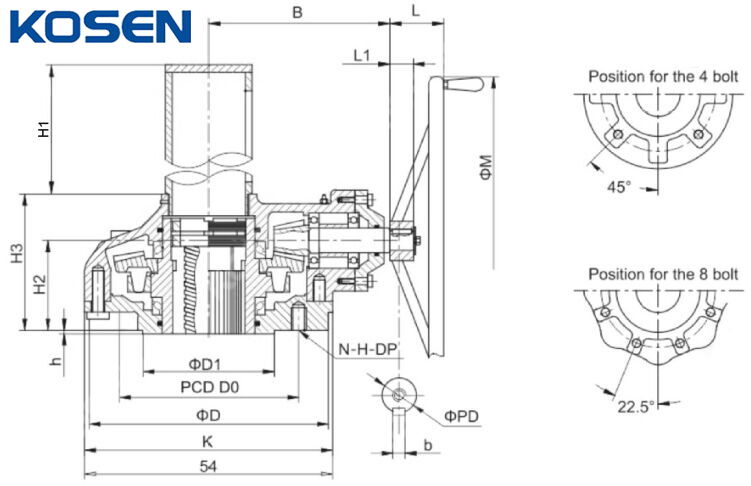

Product Parameters

Model		BA-000	BA-00	BA-0	BA-1	BA-2	BA-3	BAA-3
Ratio		2.35:1	3:1	3.6:1	4.5:1	5.2:1	6.3:1	23:1
Max stem diameter		25	30	40	52	70	90	110
Max output torque		360 N.M	480 N.M	735 N.M	1470 N.M	2940 N.M	4000 N.M	6000 N.M
Max thrust N		43000	64000	98000	196000	340000	490000	630000
Flange		F12	F14	F16	F25	F30	F35	F35
φD		150	175	210	300	350	415	415
PCD	D0	125	140	165	254	298	356	356
PCD	N-H-DP	4-M12-18	4-M16-24	4-M20-30	8-M16-24	8-M20-30	8-M30-45	8-M30-45
