JIS F7220 Y Strainer, Cast Iron, JIS FC200, 50A, 5K, 2 Inch

The JIS F7220 Y Strainer features a durable cast iron JIS FC200 body with a corrosion-resistant stainless steel filter screen for efficient debris removal. Designed for JIS 50A (2-inch) pipelines with a JIS 5K pressure rating, it comes with flat-face (FF) flanged ends for secure installation. Ideal for protecting pipelines and equipment from contaminants, this strainer ensures reliable performance in water, steam, and low-pressure fluid systems.

Product Name: JIS F7220 Y Type Strainer
Design Standard: JIS F7220
Body Material: Cast Iron FC200
Filter Screen: Stainless Steel
Size: JIS 50A, 2 Inch
Pressure: JIS 5K
End Connection: FF Flange

Product Range

Type: Y Type Strainer
Port Size Range: JIS 20A–150A, 3/4-6 Inch
Pressure: JIS 5K, JIS 10K
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Connection: FF Flange
Temperature: -29°C to 150°C
Medium: Sea water, fresh water, oil, etc.
Function: Designed to filter out impurities from the media

Marine valves are crucial components used to regulate the pressure, flow rate, and direction of fluids within ship pipelines, ensuring they are suited to the specific environmental conditions of maritime operations. These valves act as control devices in fluid pipelines, with key functions including opening or closing the flow of the medium, altering its direction, adjusting its pressure and flow rate, and protecting the proper functioning of pipeline equipment.

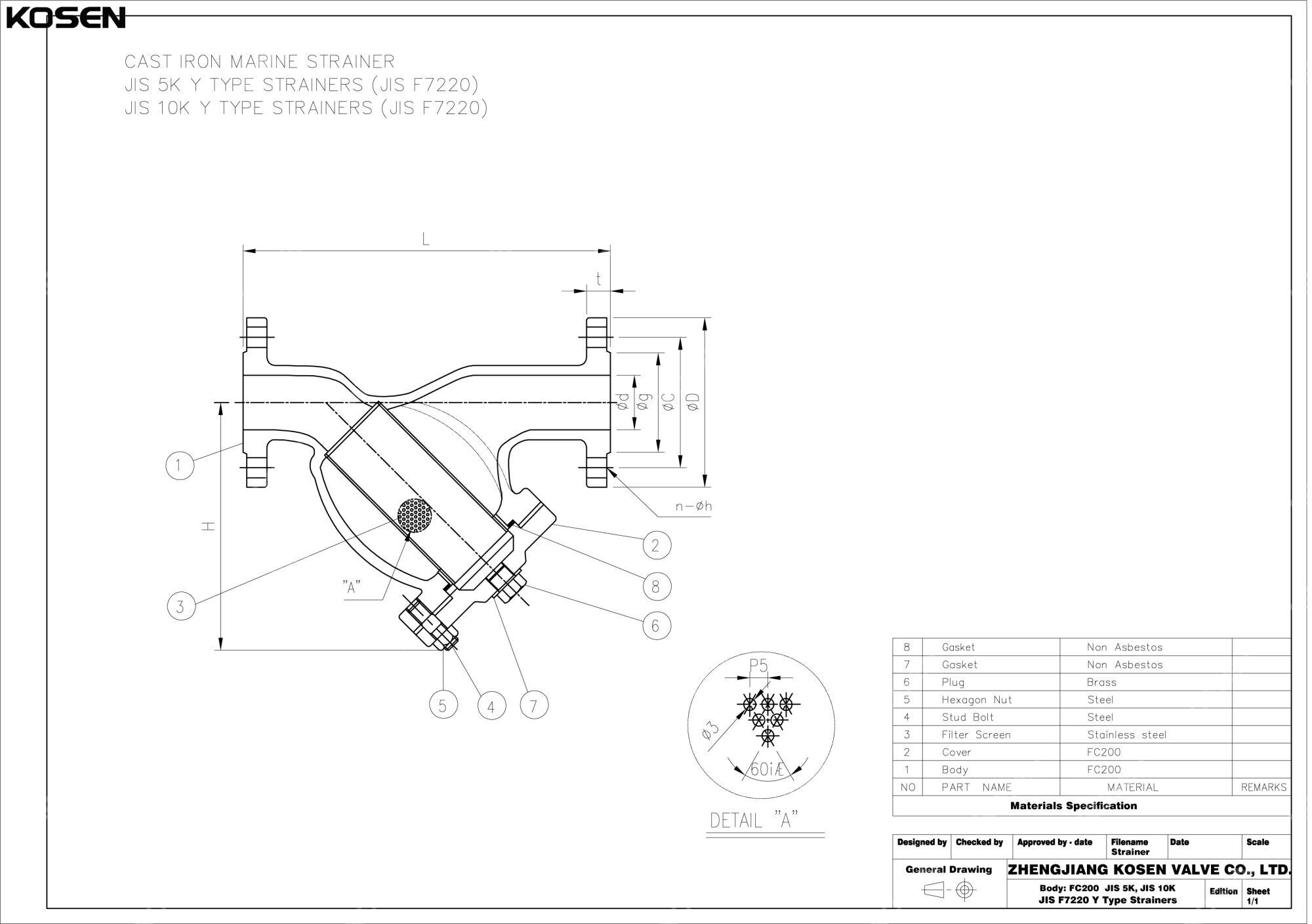

Materials of Main Parts
