Cast Iron FC200 Globe Valve, JIS F7305, 50A, 5K, 2 IN, FF

The Cast Iron JIS FC200 Globe Valve is designed per JIS F7305 standards, featuring a durable FC200 cast iron body for reliable performance. Sized at JIS 50A (2 inches) with a JIS 5K pressure rating, it is equipped with flat-face (FF) flanged ends for secure installation. Handwheel-operated for precise flow regulation, this valve is ideal for low-pressure applications in water, steam, and general fluid control systems.

Product Name: JIS F7305 Marine Globe Valve
Design Standard: JIS F7305
Body Material: Cast Iron FC200
Size: JIS 50A, 2 Inch
Pressure: JIS 5K
End Connection: FF Flange
Operation: Handwheel

Product Range

Structure: Upper Threaded Stem Stop Valve
Port Size Range: JIS 50A-400A (2-16 Inch)
Pressure: JIS 5K, JIS 10K, JIS 16K
Temperature Range: -29°C to 345°C
Body Material: Ductile Iron, Carbon Steel, Stainless Steel
Medium: Sea Water, Fresh Water, Oil, etc.

Marine valves are essential components used to control the pressure, flow rate, and direction of fluids in ship pipelines, ensuring they meet the unique environmental conditions of marine applications. These valves serve as control devices in fluid pipelines, with the primary functions of opening or closing the flow, changing the direction of the medium, adjusting the pressure and flow rate, and safeguarding the proper operation of pipeline equipment.

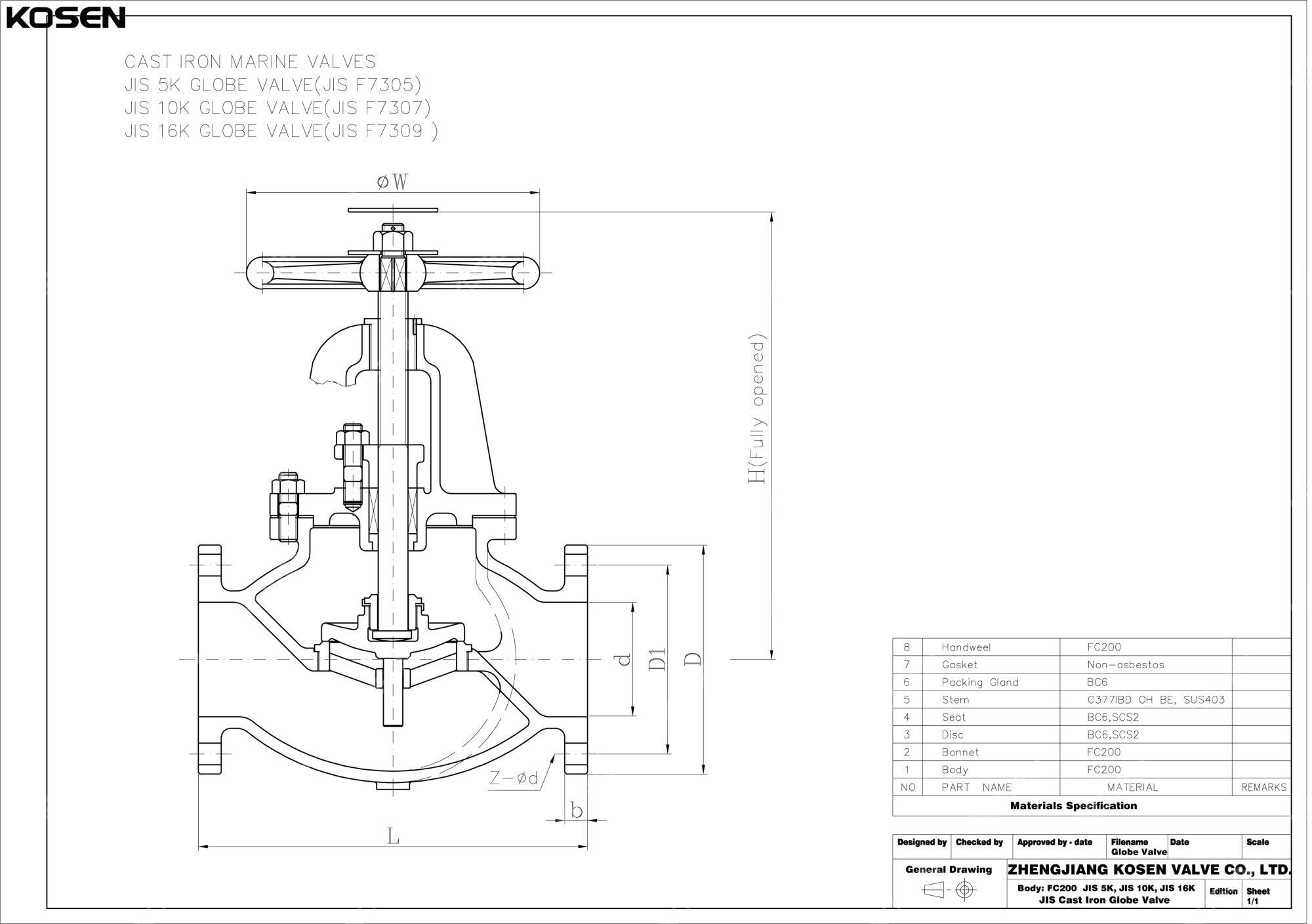

Materials of Main Parts
