JIS F3060 Angle Storm Valve, Bronze, 5K, 125A, 5 Inch, FF

The JIS F3060 Angle Storm Valve is built with a durable bronze body and features a 5-inch (JIS 125A) size, rated for JIS 5K pressure. It has FF flanged ends for secure installation. This valve is specifically designed to control water pressure and adjust water flow in stormwater and other fluid management systems.

Product Name: JIS F3060 Angle Storm Valve
Body Material: Bronze
Size: JIS 125A, 5 Inch
Pressure: JIS 5K
End Connection: FF Flange
Application: Control Water Pressure and Adjust Water Flow

The Angle Storm Valve is designed to control water pressure and adjust water flow in various fluid systems. It is suitable for applications involving sea water, fresh water, oil, and other fluids. The valve is constructed from durable materials and can handle a wide range of operating conditions, making it ideal for industrial, marine, and utility sectors.

Technical Specifications

» Port Size: JIS 50A-150A (2-6 Inch)
» Pressure: JIS 5K, JIS 10K
» Temperature Range: -29°C to 150°C
» Body Material: Carbon Steel, Bronze
» Connection Type: FF Flange
» Medium: Sea Water, Fresh Water, Oil, etc.
» Structure: Designed for controlling water pressure and adjusting flow rates.

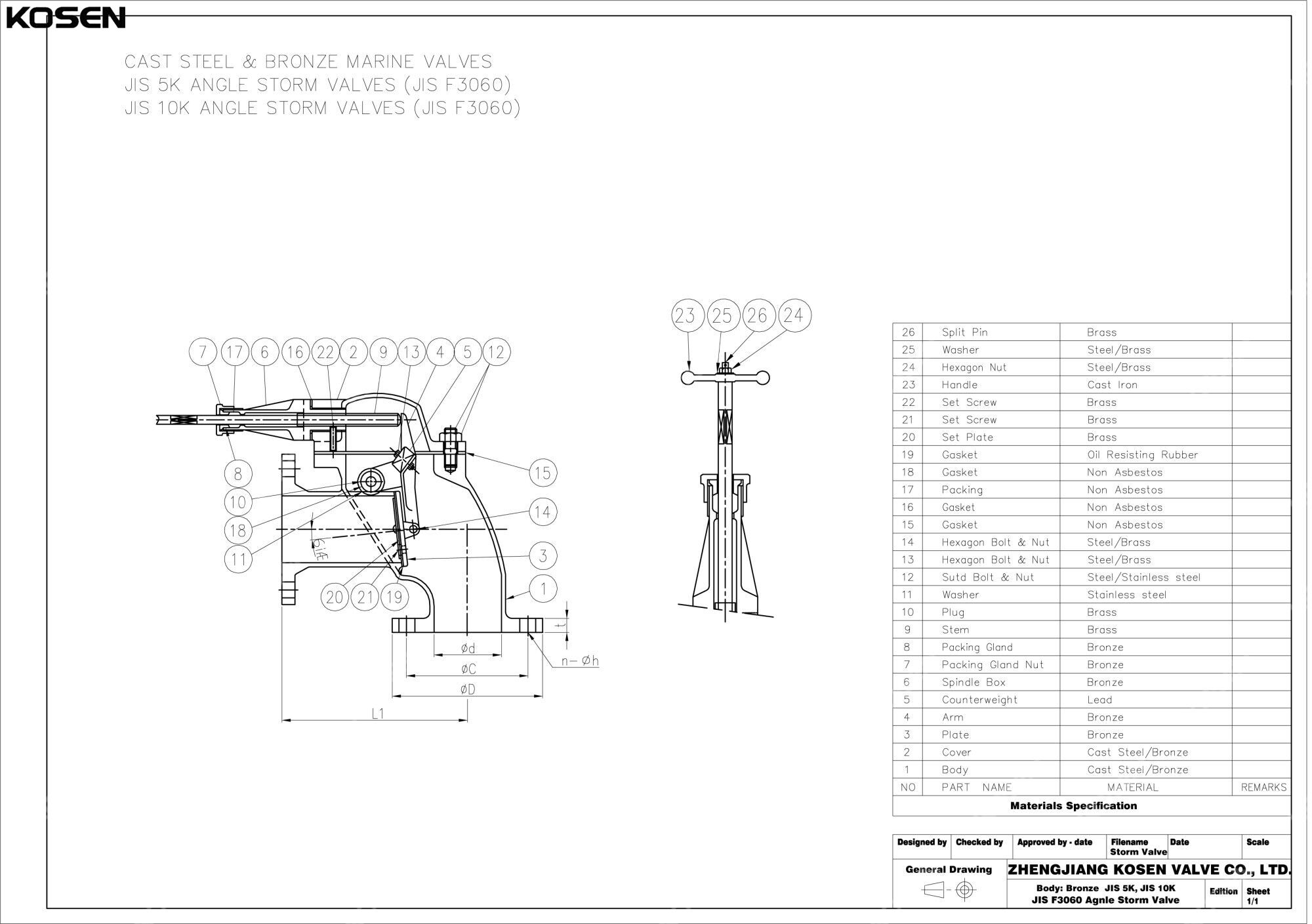

Materials of Main Parts
