JIS F3059 Straight Storm Valve, JIS SC480, 5K, 100A, 4 Inch

The JIS F3059 Straight Storm Valve is designed with a JIS SC480 cast carbon steel body for durability. It features a 4-inch (JIS 100A) size, rated for JIS 5K pressure, and is equipped with FF flanged ends for secure connections. This valve is ideal for stormwater management and other high-pressure applications.

Product Name: JIS F3059 Straight Storm Valve
Body Material: JIS SC480
Size: JIS 100A, 4 Inch
Pressure: JIS 5K
End Connection: FF Flange
Application: Control Water Pressure and Adjust Water Flow

The Straight Storm Valve is designed to efficiently control water pressure and adjust water flow in various fluid systems. It is ideal for applications involving sea water, fresh water, oil, and other fluids, making it suitable for industrial, marine, and utility sectors.

Technical Specifications

Port Size: JIS 50A-150A (2-6 Inch)
Pressure: JIS 5K, JIS 10K
Temperature Range: -29°C to 150°C
Body Material: Carbon Steel, Bronze
Connection Type: FF Flange
Medium: Sea Water, Fresh Water, Oil, etc.
Structure: Designed for controlling water pressure and adjusting flow rates.

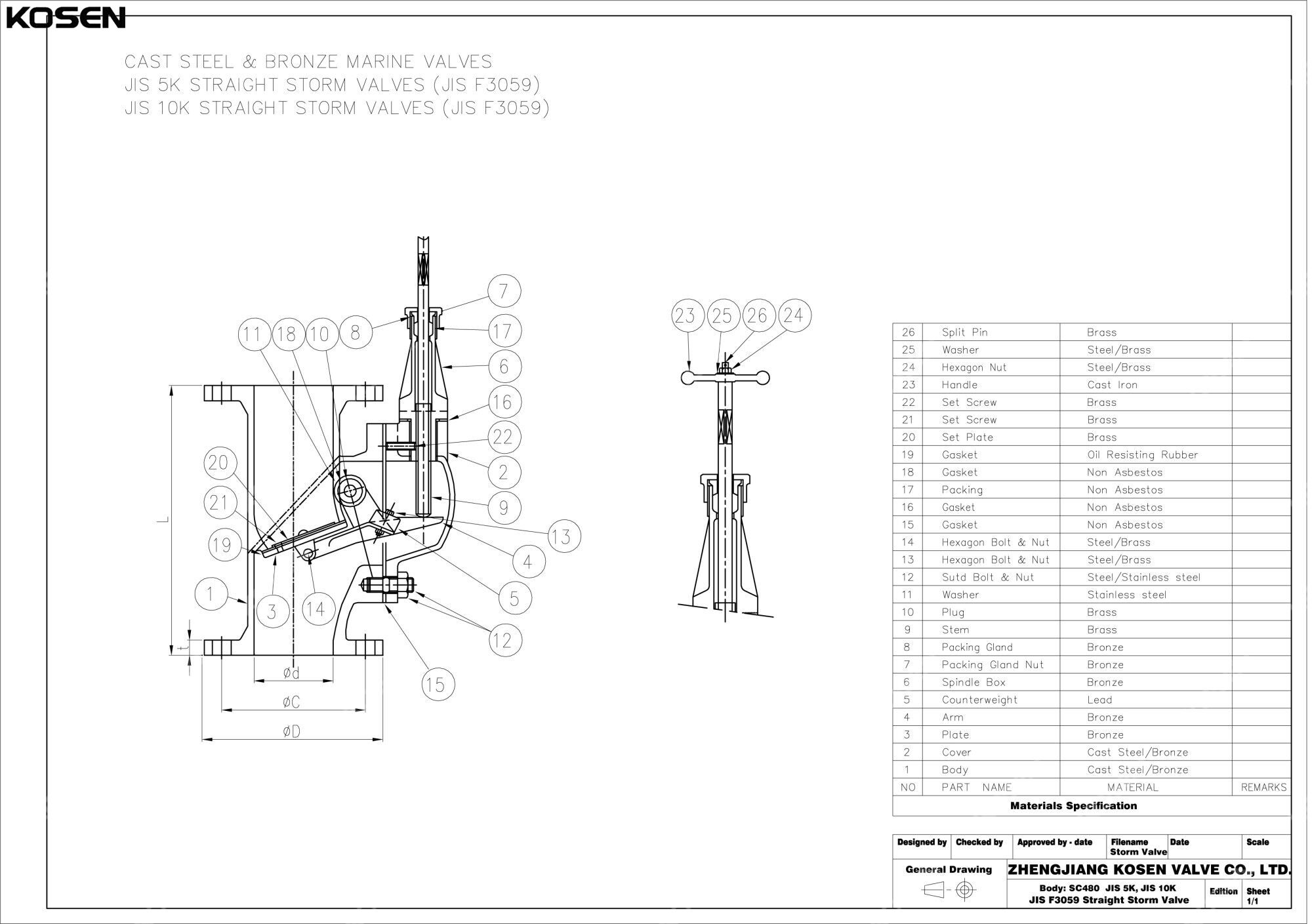

Materials of Main Parts
