GS-C25 Gate Valve, DIN 3352 F4, DN80, PN16, Rising Stem, RF

The GS-C25 Gate Valve Factory produces high-quality rising stem gate valves that adhere to the DIN 3352 F4 standard. These valves feature a carbon steel body, ensuring durability and strength in various industrial applications. With a DN80 (3-inch) size and a pressure rating of PN16 (Class 150 LB), they offer reliable performance. The valves are equipped with a handwheel for manual operation and have raised face (RF) flanged ends for secure and leak-free connections. These gate valves are ideal for controlling fluid flow in pipelines and are suitable for a wide range of applications.

Product Name: GS-C25 Gate Valve, Rising Stem
Design Standard: DIN 3352 F4
Body Material: GS-C25
Size: DN80, 3 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Operation: Handwheel
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Wedge Gate Valves are engineered to maintain VOC (volatile organic compound) leakage below 100 ppm (parts per million). To achieve this, extensive baseline laboratory testing, including both static and cycle tests, has been conducted to determine the critical design parameters required for effective low-emission sealing. These tests focus on the stem packing seal area and the bonnet gasket sealing area. In addition, We have developed an in-house testing procedure that is periodically executed to ensure that the standard product design and manufacturing criteria consistently result in the valves meeting the 100 ppm VOC leakage standard before shipment.

Technical Specifications

» Nominal Diameter: DN50-DN1000, 2-40 Inch
» Temperature Range: -29°C to 595°C
» Design Pressure: PN6 to PN16, Class 125, 150 LB
» Body/Bonnet/Wedge Materials:
Cast Steel (EN 1.0619)
Stainless Steel (EN 1.4308, EN 1.4408)
Alloy Steel (EN 1.7335 / ASTM A217 WC6)
» Stem: X20Cr13 or EN 1.4021; Stainless Steel (EN 1.4308, EN 1.4408)
» Seat Options: 13Cr, 18Cr, Stellite
» End Connections: RF Flange, Groove Flange, Butt Weld (BW)
» Operation Modes: Handwheel, Bevel Gear, Electric, Pneumatic
» Structure: BB-BG-OS&Y (Bolted Bonnet, Bolted Gland, Outside Stem & Yoke)
» Design Standard: DIN 3352
» Face-to-Face Dimensions: EN 558-1 Series 14 (DIN 3202 F4 series)
» Flange Standards: DIN 2543–2547, EN 1092-1, GOST 12815/12819
» Butt Weld Ends: EN 12627
» Testing & Inspection: DIN 3230

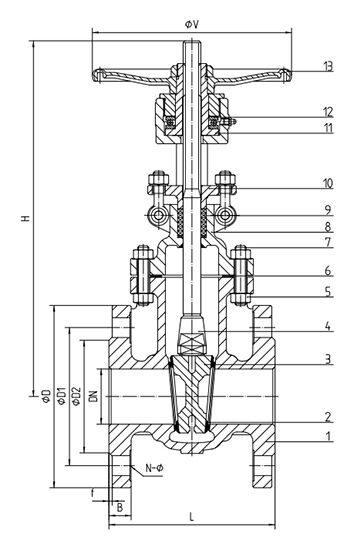

Structural Diagram

Product Features

» Anti-Friction Ball Thrust Bearing: Reduces friction for smooth operation.
» Grub Screw: Secures the yoke nut in the bonnet.
» Grease Nipple: Lubricates mating parts.
» OS&Y (Outside Stem and Yoke): Provides clear position indication.
» Metal-Sealed: Available in Trim #1, #5, #8, #10, etc.
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port: Ensures unrestricted flow.
