Full Lift Safety Valves, API 526, ASTM A351 CF8, DN25, PN16

Name: Full Lift Safety Valves, API 526, ASTM A351 CF8, DN25, PN16
SKU: KV-20250714-SV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The China Full Lift Safety Valves Plant manufactures API 526-compliant safety valves with a cast stainless steel body (ASTM A351 CF8) for superior corrosion resistance. These 1-inch (DN25) valves are rated for PN16/Class 150 LB pressure and feature BSP threaded ends for secure connections. Designed for overpressure protection in steam, gas, and liquid systems, they ensure reliable performance in petrochemical, power, and industrial applications.

Request a quote

Detail Information

Product Name: Full Lift Safety Valves
Design Standard: API 526
Body Material: ASTM A351 CF8
Size: DN25, 1 Inch
Pressure: PN16, Class 150 LB
End Connection: BSP Threaded
Medium: Steam, Air

The A28H type full lift safety valve is designed for use in equipment and pipelines that handle media such as water, air, and steam, where the working temperature is less than 200°C. The A28Y-P/R type safety valve is specifically intended for equipment and pipelines that handle corrosive media, also with a working temperature limit of less than 200°C. These valves are used as additional pressure relief devices to ensure safety and prevent overpressure conditions.

Technical Specification

» Product model: A28H, A28Y
» Normal Size Range: 1/2-3 inch (DN15-DN80)
» Normal Pressure Rating: PN10-PN40, Class 150-300 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, Brass, Bronze
» Ends Connections: BSP Thread, NPT Thread

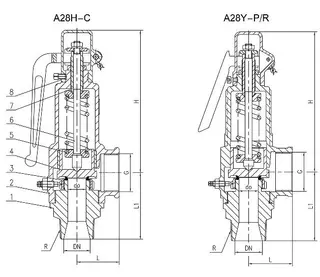

Structural Diagram

Main Parts and Materials

No	Name of Parts	Carbon steel	Stainless steel	Stainless steel
1	Nozzle	AISI 1035	SS 304	SS 316
2	Body	A216 WCB	A351 CF8	A351 CF8M
3	Adjusting Ring	2Cr13	SS 304	SS 316
4	Disc	2Cr13	SS 304	SS 316
5	Spring	50CrVA	50CrVA	50CrVA
6	Stem	2Cr13	SS 304	SS 316
7	Adjusting Bolt	AISI 1045	2Cr13	2Cr13
8	Cap	ZG230-450	SS 304	SS 316
9	Sealing surface	Overlay stellite	Overlay stellite	Overlay stellite
