Ductile Iron Ball Check Valve, ASTM A395, 1 IN, 2000 PSI, FP

The Ductile Iron Ball Check Valve is manufactured to ASTM A395 standards, featuring a durable ductile iron body. With a size of 1 inch (DN25) and a pressure rating of 2000 PSI, it is designed for high-pressure applications. The valve has full port design for minimal pressure drop and NPT threaded ends for easy installation. It is also NACE MR0175 compliant, ensuring suitability for applications involving sour gas and other corrosive environments.

Product Name: Ductile Iron Ball Check Valve
Port: Full Port
Body Material: Ductile Iron ASTM A395
Size: 1 Inch, DN25
Pressure: 2000 PSI
End Connection: NPT Threaded
NACE Standard: NACE MR0175

Product Range

» Size Range: NPS 1-2 Inch (DN25-DN50)
» Pressure Range: 1000 to 5000 PSI WP
» Materials: Ductile Iron, Carbon Steel, Stainless Steel
» Ductile Iron: 1000 to 2000 WOG
» Carbon Steel & Stainless Steel: 2000 to 5000 WOG
» Temperature Range: -20°C to 80°C
» End Connections: Threaded ends to ANSI B1.20.1 (NPT)
» Medium: Water, Oil, Gas
» Inspection and Testing: According to API 598
» Seat and Seal: Viton
» NACE MR-0175 Compliance

This Ball Type Check Valve is designed to prevent backflow in pipelines and is available in ductile iron, carbon steel, and aluminum bronze materials, with sizes ranging from 1 Inch to 2 Inch. The valve features a stainless steel ball as the standard, ensuring durability and reliability. It incorporates the patented Hinge-Works feature, contributing to an extended service life. The valve is ideal for use in a variety of industrial applications, including hydraulics, pneumatics, pumps, and plumbing. Particularly effective in oil and gas production lines, the ball type check valve offers simple design and easy repairability, making it a versatile and cost-effective solution for preventing backflow.

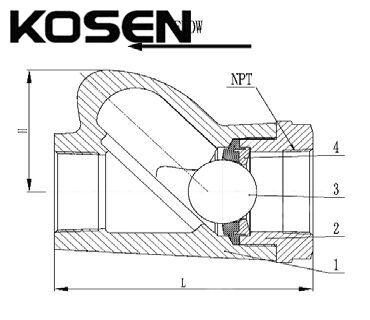

Main Parts and Materials

Main Dimensions (mm)
