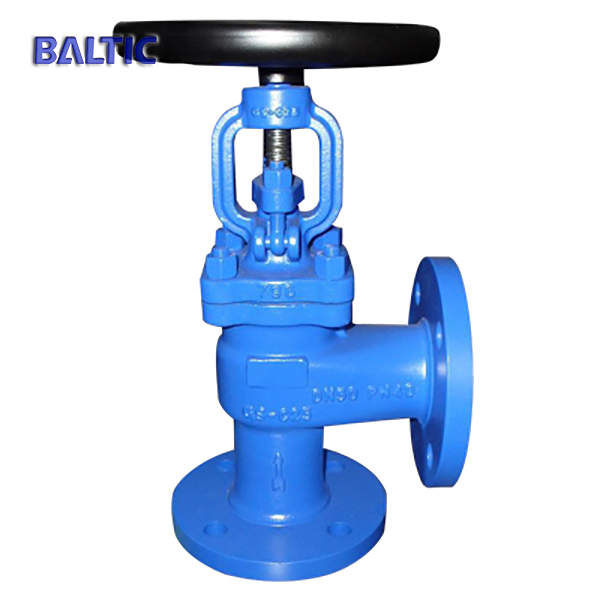

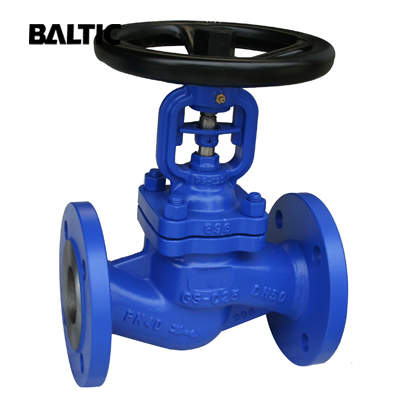

DIN 3356 Globe Valve, GS-C25, DN50, PN40, Bellows Sealed, RF

Product Name: DIN 3356 Globe Valve, Bellows Sealed
Design Standard: DIN 3356
Body Material: GS-C25, Carbon Steel
Size: DN50, 2 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel

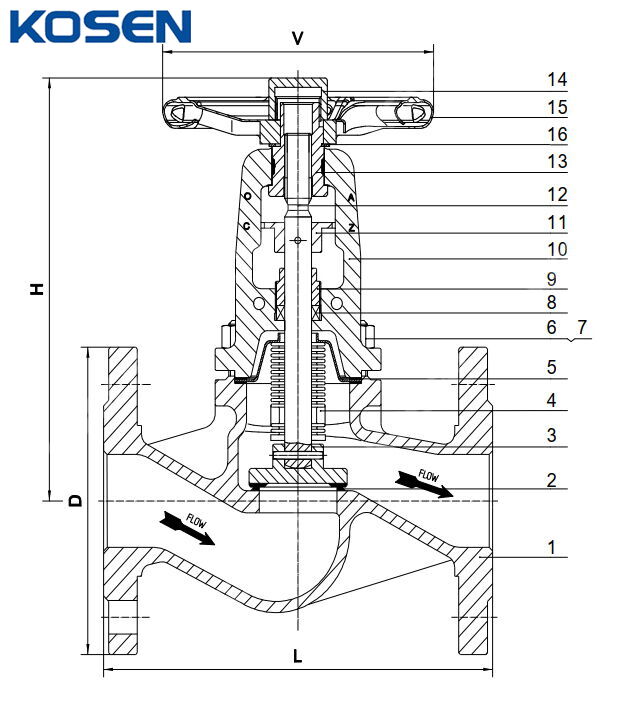

The bellows-sealed globe valve integrates advanced foreign technology, utilizing a double bellows design welded to the valve stem. This design ensures stable operating performance while minimizing valve vibration caused by plug movement. At high temperatures, the stem remains isolated from the medium, guaranteeing zero leakage. The valve is engineered for exceptional strength and toughness, allowing it to operate reliably for tens of thousands of cycles.

The ergonomically designed handwheel enhances operational ease, offering extended service life and convenient handling. The bellows cut-off valve features a plug-shaped design with flat or conical sealing faces. The valve moves along the centerline of the fluid, providing efficient flow control. This design is highly popular due to the minimal friction between sealing surfaces during operation, ensuring durability and reliability. It offers a compact opening height, is easy to manufacture, and has straightforward dimensional requirements.

Technical Specifications

» Nominal Diameter: DN15–DN400 (1/2–16 Inch)
» Design Pressure: PN16–PN64 (Class 150–600 LB)
» Temperature Range: -29°C to 595°C
» Materials: 1.0619, GS-C25, ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M
» Bellows Material: SS 304, SS 316, SS 316L, and other materials available
» End Connections: Flanged, Welded, or Threaded Ends
» Operation: Handwheel, Bevel Gear, Electric, Pneumatic
» Design and Manufacture: DIN 3356
» Inspection and Test: ISO 5208, EN 12266
» Flanged Ends Dimensions: DIN 2543, DIN 2544, DIN 2545
» Butt-Welded Ends Dimensions: EN 12627
» Face-to-Face and End-to-End Dimensions: DIN 3202, EN 558-1, ISO 5752
» Pressure-Temperature Ratings: DIN 2401
» Test & Inspection: DIN 3230
» Medium: Suitable for water, gas, oil, and other fluids.

Product Features

» Reliable Design: bellows-sealed globe valves feature a well-engineered structure, ensuring reliable sealing, excellent performance, and an attractive appearance.
» Wide Material Availability: We offers a variety of cast body and trim materials, providing the most economical solutions for your process and steam systems.
» Durable Sealing Surface: The sealing surface is hard-faced with chromium alloy, offering excellent resistance to wear, corrosion, and friction, ensuring a longer service life. The double sealing design ensures a tight shut-off for optimal operation.
» Stem Construction: The stem undergoes quenching and tempering with nitriding treatment, enhancing its anti-corrosion and anti-friction properties for reliable and durable performance.
» Optional Stem Position Indicator: Available as an option, the stem position indicator provides a clear and direct display of the valve's on/off status for easier operation and monitoring.
