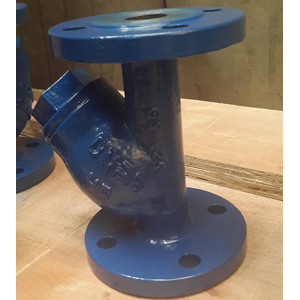

DIN 3352 Y Type Strainer, Cast Steel GS-C25, DN100, PN40, RF

The DIN 3352 Y Type Strainer features a cast carbon steel GS-C25 body, ensuring strength and durability. With a size of 4 inches (DN100) and a pressure rating of Class 300 LB (PN40), it is designed for high-pressure applications. The strainer is equipped with RF flanged ends for secure installation and easy maintenance. This Y type strainer effectively filters out debris and particles from the flow, offering reliable performance in various industrial systems.

Product Name: DIN 3352 Y Type Strainer
Design Standard: DIN 3352
Body Material: Cast Carbon Steel GS-C25
Size: DN100, 4 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged

Y-type strainers are essential high-efficiency filtration equipment in purification systems, playing a significant role in both domestic and industrial wastewater treatment. With their superior design and application advantages, Y-type strainers are widely favored for their effectiveness in treating large volumes of wastewater, enabling the efficient reuse of valuable water resources and contributing to significant water conservation.
Key benefits of Y-type strainers include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, long service life, and the use of durable stainless steel material. They offer optional filtration accuracy and come in a variety of specifications. Compared to other filtration equipment, Y-type strainers stand out for their effectiveness in engineering applications. The treated water not only meets national discharge standards but also supports the goal of water reuse and sustainability.

Technical Specification

» Normal Size Range: DN15-DN600, 1/2-24 Inch
» Normal Pressure Rating: PN16-PN40
» Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtering Accuracy: 18-30 mesh for water filter, 10-100 mesh for air filter, 100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, BW
» Medium: Steam, High-temperature Steam, Gas, Oil

Standards Compliance

» Design and Manufacture: DIN 3352, DIN 3840
» Face to Face (end to end): EN 558-1
» Flanged Connection: EN 1092-B1
» Test and Inspection: EN 12266
» Butt Welded End: EN 12627, DIN 3239

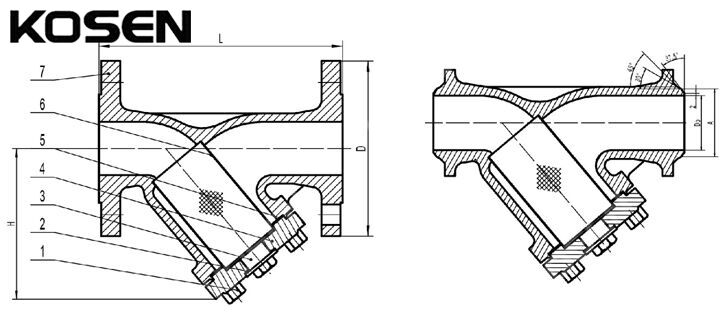

Material for Main Parts
