Cast Iron Water Strainer, JIS F7121, FC200, 200A, 10K, 8 IN

Product Name: Cast Iron Water Strainer
Design Standard: JIS F7121
Body Material: Cast Iron JIS FC200
Size: JIS 200A, 8 Inch
Pressure: JIS 10K
End Connection: FF Flange

Marine valves like water strainer are essential equipment used to control the pressure, flow rate, and direction of fluids in ship pipelines, designed to withstand the specific environmental conditions encountered at sea. A valve functions as a control device within fluid pipelines, with its primary roles being to either connect or shut off the flow of medium, change the flow direction, regulate the pressure and flow rate, and ensure the safe operation of pipeline equipment.

Product Range

» Port Size: 125A to 400A (5-16 Inch)
» Pressure Rating: JIS 5K, JIS 10K
» Structure: Filters out impurities from the media
» Temperature Range: -29°C to 150°C
» Body Material: Ductile Iron, Carbon Steel, Stainless Steel
» Connection Type: FF Flange
» Medium: Seawater, freshwater, oil, etc.

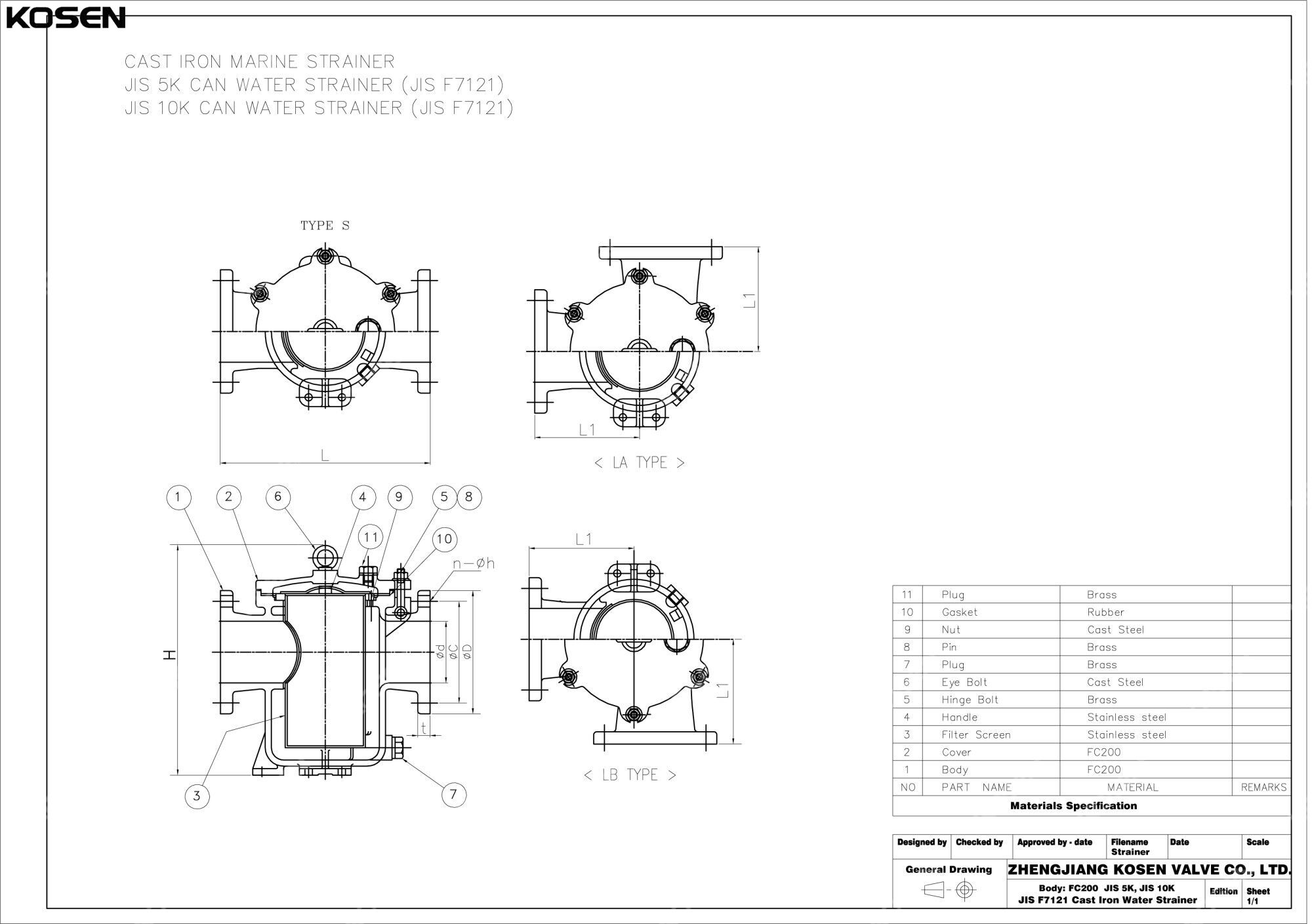

Materials of Main Parts
