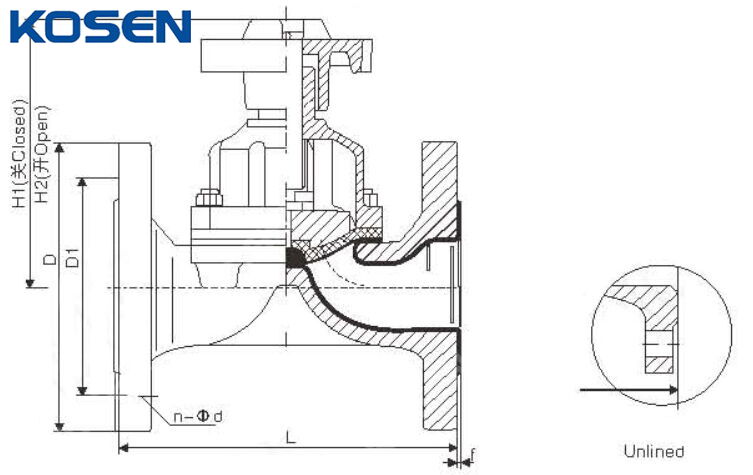

BS 5156 Diaphragm Valve, GGG40, 2-1/2 IN, 150 LB, EPDM Lined

The BS 5156 Diaphragm Valve is a Weir type valve, compliant with MSS SP-88 standards. It features a ductile iron GGG40 body, a rubber diaphragm, and EPDM lining for enhanced durability and sealing. With a 2-1/2 inch (DN65) size, Class 150 LB, and PN16 pressure rating, this valve comes with FF ends for secure connections.

Product Name: BS 5156 Diaphragm Valve
Type: Weir Type Diaphragm Valve
Design Standard: BS 5156, MSS SP-88
Body Material: Ductile Iron GGG40
Diaphragm Material: Rubber
Lining Material: EPDM
Size: 2-1/2 Inch, DN65
Pressure: Class 150 LB, PN16
End Connection: FF Flanged

Weir Type Rubber Lined Diaphragm Valves are built to international standards. These valves are designed so that the flowing media does not touch the internal components, which greatly extends their service life. The valves also feature a self-draining function, ensuring no residue remains and keeping the pipeline clean and safe. The valve body is available in materials like cast iron, ductile iron, and cast steel. The lining materials include glass, ETFE, PFA, PVDF, and Halar rubber, which can be customized to meet specific requirements.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 80°C
» Handwheel: Ductile Iron, Aluminum Alloy
