Bronze Globe Valve, MSS SP-80, BS 5154, 2 Inch, CL125, FNPT

Bronze Globe Valve, MSS SP-80, BS 5154, 2 Inch, CL125, FNPT

Key Specifications / Features

The China Bronze Globe Valve Manufacturer produces high-quality non-rising stem gate valves designed to MSS SP-80 and BS 5154 standards. These valves are made from durable bronze material, ensuring excellent corrosion resistance and reliability. With a 2-inch diameter (DN50) and a pressure class of 125 LB (PN16), they are suitable for a variety of industrial applications. The valves feature female national pipe thread (FNPT) ends, providing secure and easy connections. This makes them ideal for systems requiring precise control and long-term performance.

Request a quote

Detail Information

Product Name: Bronze Globe Valve, Non-rising Stem
Design Standard: MSS SP-80, BS 5154
Body Material: Bronze
Size: 2 Inch, DN50
Pressure: Class 125 LB, PN16
End Connection: FNPT Threaded
Operation: Manual
Medium: Sea Water, Oil, Liquefied Gas, Steam, etc
Temperature Range: -29°C to 150°C

The bronze threaded globe valve is a type of forced sealing valve, where the closure element (valve disc) moves along the centerline of the valve seat. Sealing is achieved as the valve disc presses tightly against the valve seat through the stem's force, effectively preventing medium flow. This valve allows only one-way flow, requiring attention to installation direction. Its stem features a short stroke for quick shut-off and reliable sealing, making it ideal for shut-off, regulation, and throttling. Due to the proportional relationship between disc stroke and flow passage opening, it provides precise flow control. Made of bronze, the valve offers good corrosion resistance and mechanical strength, making it suitable for various media and operating conditions.

Technical Specification

» Product: Bronze Threaded Globe Valve
» Size: 1/2-4 Inch (DN15-DN100)
» Material: Bronze, Aluminum Bronze (ASTM B148 C95800, C83600, B584 C84400, ASTM B62)
» Connection: Threaded End (G, Rc, RP, BSP, BSPT, NPT)
» Thread Standard: BS 21:1973, DIN 259/299, ISO 228, ANSI B2.1
» Pressure Rating: Class 125, 150, 200, 300, 350 LB, 200 WOG; PN16, PN20, PN25, PN40; 5K, 10K
» Design Standard: MSS SP-80, BS 5154, JIS B2011
» Testing Standard: MSS SP-80, BS 5154, JIS B2011
» Medium: Seawater, Oil, Liquefied Gas, Steam
» Temperature Range: -20°C to 150°C
» Operation Mode: Handwheel Operated

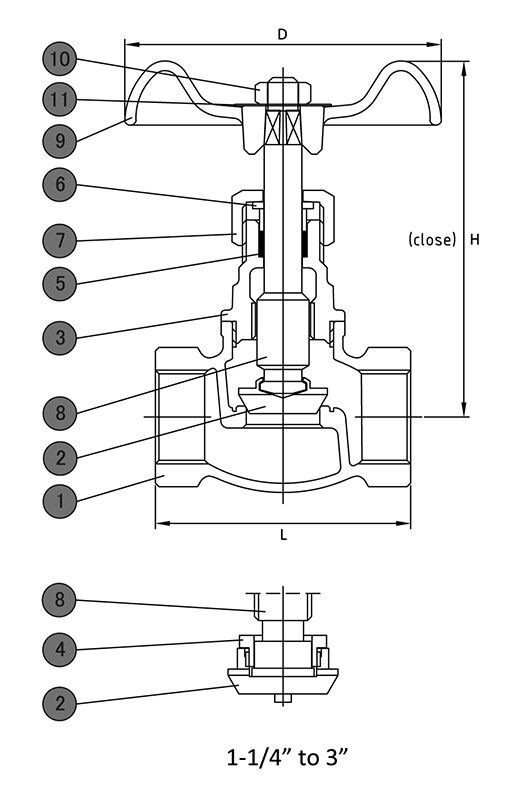

Structural Diagram
Non-rising Stem Bronze Globe Valve Structural Diagram

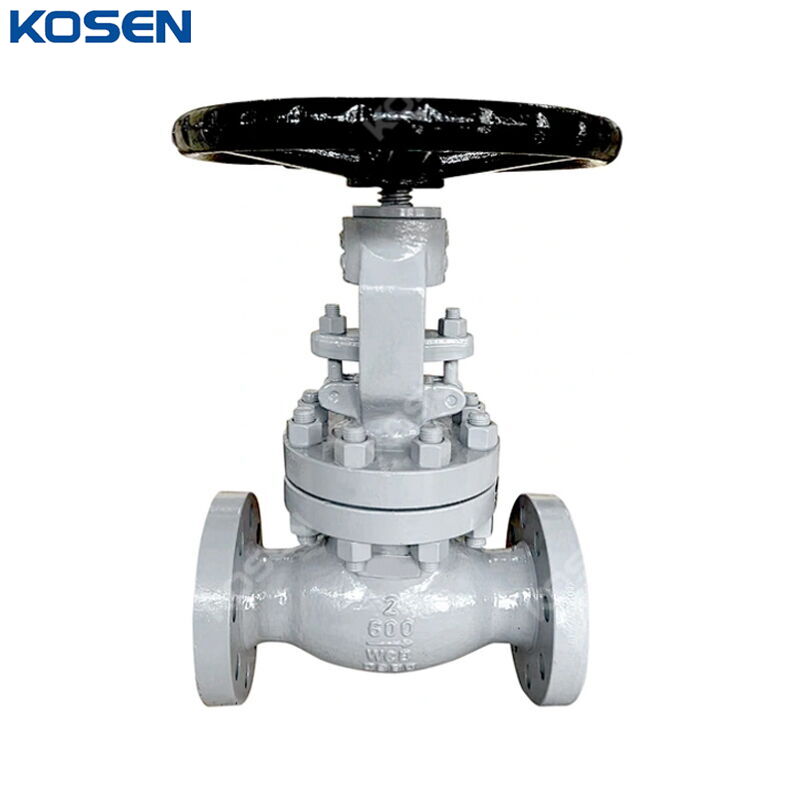

Similar Products
