ASTM A216 WCB Basket Strainer, ANSI B16.34, 3 IN, CL150, RF

ASTM A216 WCB Basket Strainer, ANSI B16.34, 3 IN, CL150, RF

Key Specifications / Features

The China Carbon Steel Basket Strainer Factory specializes in producing high-quality basket strainers designed to ANSI B16.34 standards. These strainers feature a robust ASTM A216 WCB carbon steel body, ensuring durability and reliability. With a 3-inch diameter and a pressure class of 150 LB, they are equipped with raised face (RF) flanged ends for secure and leak-tight connections. Suitable for a variety of applications, including water, ammonia, oil, and hydrocarbons, these basket strainers provide effective filtration and protection for downstream equipment.

Request a quote

Detail Information

Product Name: ASTM A216 WCB Basket Strainer
Type: Basket Strainer
Design Standard: ANSI B16.34
Body Material: ASTM A216 WCB
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Medium: Water, Ammonia, Oil, Hydrocarbons, etc.
Temperature Range: -29°C to 425°C

The basket-type strainer is primarily composed of a connecting pipe, main pipe, filter basket, flanges, flange cover, and fasteners. As fluid flows through the main pipe into the filter basket, solid impurities are captured within the basket while the filtered fluid exits through the outlet. For cleaning, simply unscrew the drain plug at the bottom of the main pipe to release any remaining fluid, remove the flange cover, and take out the filter basket. After cleaning, reassemble the components. This straightforward process makes maintenance quick and easy.

Technical Specification

» Product Model: SD16C
» Normal Size Range: 1-1/2 – 48 Inch (DN40-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: 20# Steel, ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
» Ends Connections: RF, BW

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face-to-Face (End-to-End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

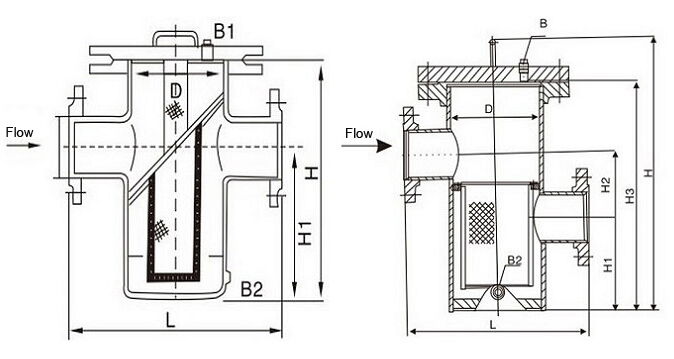

Structural Diagram

ASTM A216 WCB Basket Strainer Structural Diagram

Main Dimensions

No

Name of Parts

Carbon steel

Stainless steel

1

Body

A216 WCB

A351 CF8

2

Bonnet

A216 WCB

A351 CF8

3

Screen

SS 304

SS 304

4

Gasket

Graphite + SS

Graphite + SS

5

Bolt

A193 B7

A193 B8

6

Nut

A194 2H

A194 8
