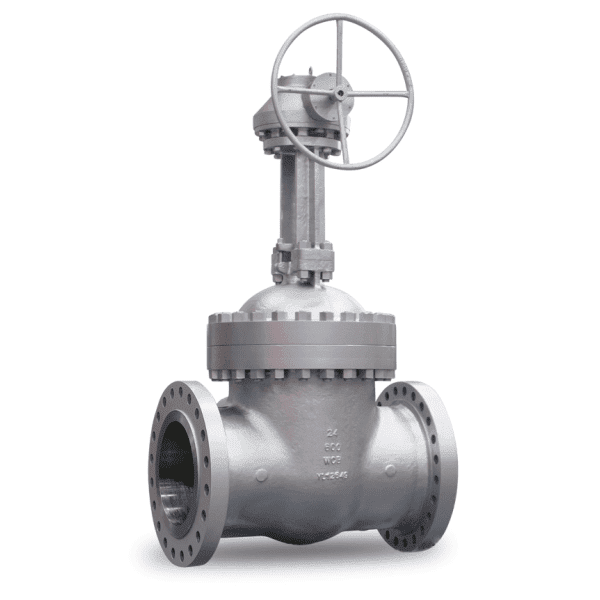

Bolted Bonnet Wedge Gate Valve, API 600, WCB, 56 Inch, CL150

Name: Bolted Bonnet Wedge Gate Valve, API 600, WCB, 56 Inch, CL150
SKU: KV-20250227-CSGTV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Bolted Bonnet Wedge Gate Valve is a robust industrial valve manufactured to API 600 standards. It features a carbon steel body made from ASTM A216 WCB material, providing excellent strength and durability. With a large size of 56 inches (DN1400), this valve is designed for high-capacity applications. It has a pressure rating of 150 LB (PN20) and equipped with RF (Raised Face) flanged ends for secure and leak-free connections.

Request a quote

Detail Information

Product Name: Bolted Bonnet Wedge Gate Valve
Design Standard: API 600
Body Material: ASTM A216 WCB
Size: 56 Inch, DN1400
Pressure: Class 150 LB, PN20
End Connection: RF
Operation: Gear Box

Cast Steel Gate Valves are designed and manufactured to achieve less than 100 ppm (parts per million) leakage of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including both static and cycle tests, has been conducted to establish critical design parameters that ensure low emission sealing in the stem packing and bonnet gasket areas. An in-house testing procedure is periodically performed to guarantee that standard product design and manufacturing criteria consistently result in the Cast Steel Gate Valve meeting the maximum 100 ppm VOC leakage requirement before shipment.

Technical Specifications

» Nominal Diameter: NPS 1/2-48 Inch (DN15-DN1200)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Operation: Hand wheel, bevel gear, electric, pneumatic
» Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5, 22 Inch, 26-36 Inch to MSS-SP-44 or to API 605 on request
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.25
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, etc.

Product Features

» Anti-Friction Ball Thrust Bearing: Reduces friction for smooth operation.
» Grub Screw: Secures yoke nut in the bonnet.
» Grease Nipple: Lubricates mating parts.
» OS&Y (Outside Stem and Yoke): External stem and yoke design.
» Metal-Sealed: API Trim #1, #5, #8, #10, etc.
» Optional Locking Device or Stem Extension.
» Optional Direct Mounting to ISO 5211.
» Full Port
