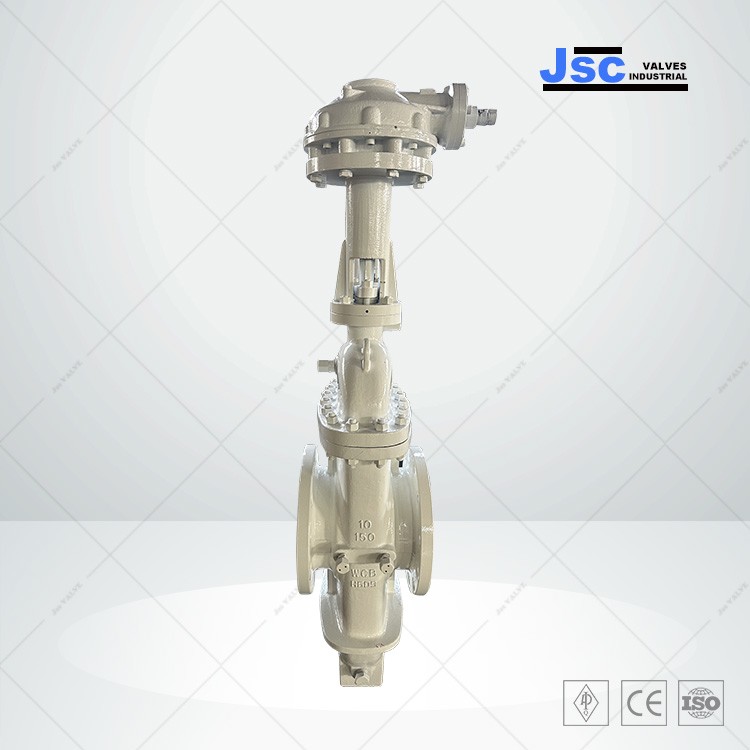

ASTM A216 WCB Orbit Plug Valve, API 6D, 10 Inch, 150 LB, RF

Name: ASTM A216 WCB Orbit Plug Valve, API 6D, 10 Inch, 150 LB, RF
SKU: KV-20250107-OPV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The ASTM A216 WCB Orbit Plug Valve is a high-quality, carbon steel valve designed in compliance with API 6D and API 599 standards. Featuring a 10-inch, DN250 size, it is rated for Class 150 LB and PN20 pressure. With RF flanged ends, this valve ensures secure connections and reliable performance.

Request a quote

Detail Information

Product Name: Twin Seal Orbit General Valve
Structure: Orbit Plug/General Valve
Design Standard: API 6D, API 599
Body Material: ASTM A216 WCB
Size: 10 Inch, DN250
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Handwheel

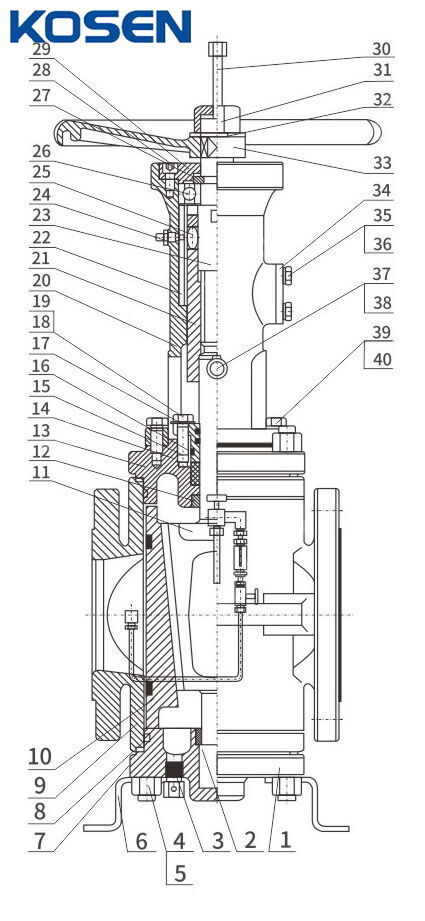

Twin Seal Orbit Valve features a unique design that ensures efficient operation. When the valve is fully open, the plug’s channel aligns perfectly with the valve body’s channel, minimizing pressure loss. Rotating the handwheel moves the plug toward the valve, simultaneously rotating the valve disc 90 degrees. As the handwheel continues to rotate, the plug is pressed downward, causing both sides of the valve to open, and the valve disc presses tightly against the valve seat to close. Rotating the handwheel in the opposite direction causes the plug to lift, releasing the valve disc from the seat. Continued rotation of the handwheel rotates the valve disc 90 degrees, realigning the plug’s channel with the valve body’s channel to return the valve to the fully open position.

Technical Specifications

» Structure: Twin Seal Orbit Plug Valve
» Nominal Diameter: NPS 2-36 Inch (DN50-DN900)
» Design Pressure: Class 150-900 LB(PN20-PN150)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C
» Design Standards: API 6D, API 599
» Face-to-Face: ASME B16.10
» Connection Ends: RF, RTJ
» Test Standards: API 598, ISO 5208
» Design Temperature: -46°C to +300°C
» Applicable Mediums: Water, steam, oil, gas, etc.
» Operation: Lever, Gearbox, Electric, Pneumatic, Hydraulic

Product Features

The orbit plug valve features a well-designed structure with reliable sealing, excellent performance, and an aesthetically pleasing appearance. Sealing is achieved through sealing rings around the valve disc, with unique protection provided by wallow-tailed sinks and fixed sealing rings. Its double-direction flow design enhances convenience during installation and operation. The materials used for the components and flange sizes can be customized based on the actual operating conditions or customer requirements, ensuring flexibility to meet various engineering needs.
