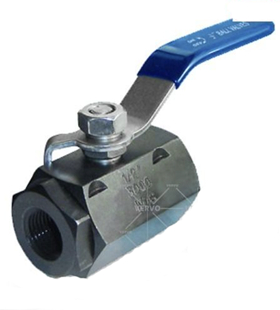

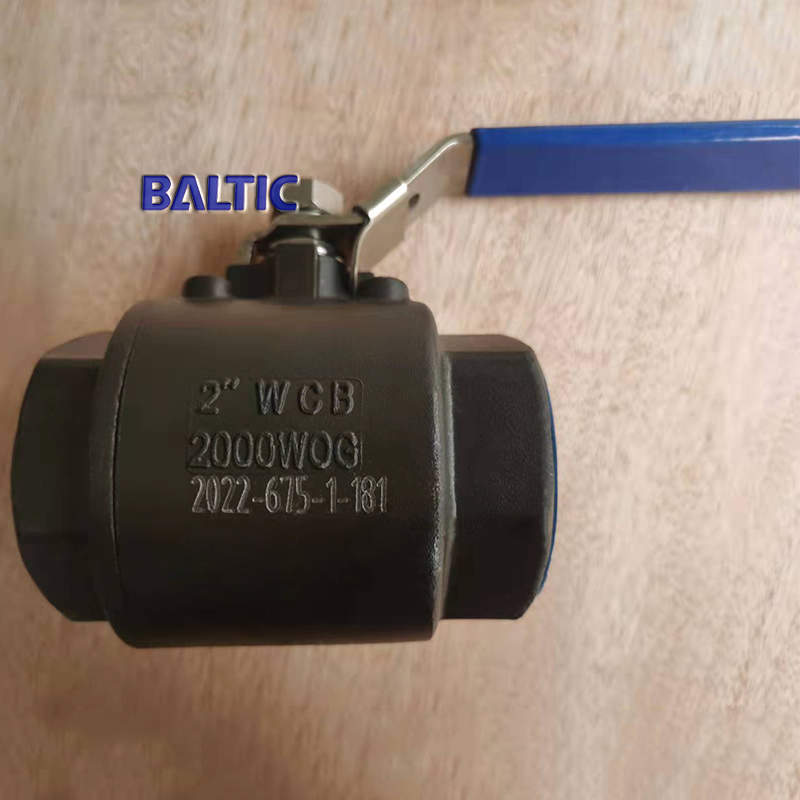

ASTM A216 WCB Ball Valve, 2 Piece, 2 Inch, 3000 PSI, FP, NPT

Our Carbon Steel Oilfield Ball Valve plant produces high-quality valves designed for demanding oilfield applications. These valves are constructed from durable ASTM A216 WCB material. With a 2-inch (DN50) size and a pressure rating of 3000 PSI WOG, they offer robust performance. The full port design ensures unrestricted flow, while the 2-piece construction allows for easy maintenance and inspection. Equipped with NPT ends for secure connections and operated by a lever for simplicity.

Product Name: ASTM A216 WCB Oilfield Ball Valve
Features: Full Port, 2 Piece
Body Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: 3000 PSI / WOG
End Connection: NPT
Operation: Lever

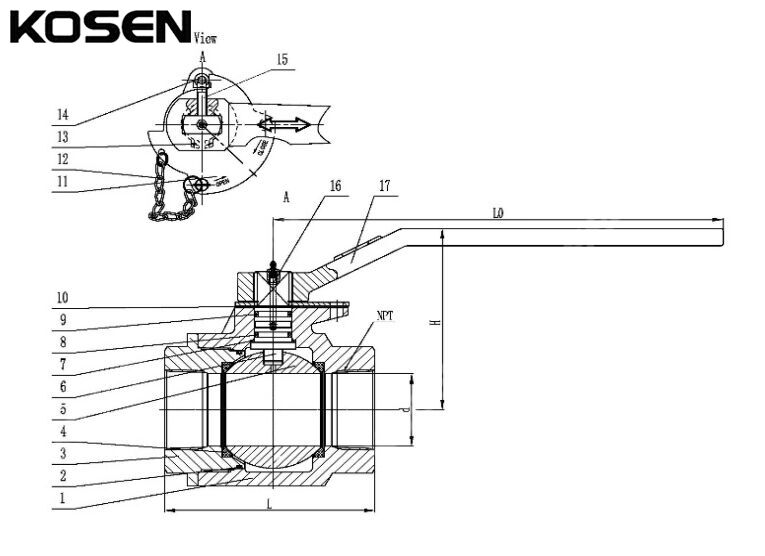

This is an oil field ball valve, which includes a ball valve body and valve tubes. The left and right sides of the ball valve body are equipped with valve tubes. The right side of the inner cavity of the ball valve body features a second slide rail. The valve rod runs through the ball valve body. A stable block is installed at the top of the valve rod, with a handwheel fixedly installed at the top of the stable block. A limit device is installed within the inner cavity of the valve rod.

Technical Specification

» Size Ranges: NPS 2–4 Inch (DN50–DN100)
» Pressure: 3000 PSI, 5000 PSI
» Body and Bonnet Material: ASTM A216 WCB
» Seats Material: DELRIN
» Ball and Stem Material: SS 420, SS 304, SS 316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspect and Test: API 598
» Temperature Range: -20°C to 120°C
» Medium: Water, Oil, Gas

Product Features

» Threaded Body Construction
» Adjustable Packing Gland
» Blow-out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball
» Fire-Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore (Optional)


Materials of Main Parts



Main Dimensions (in)
