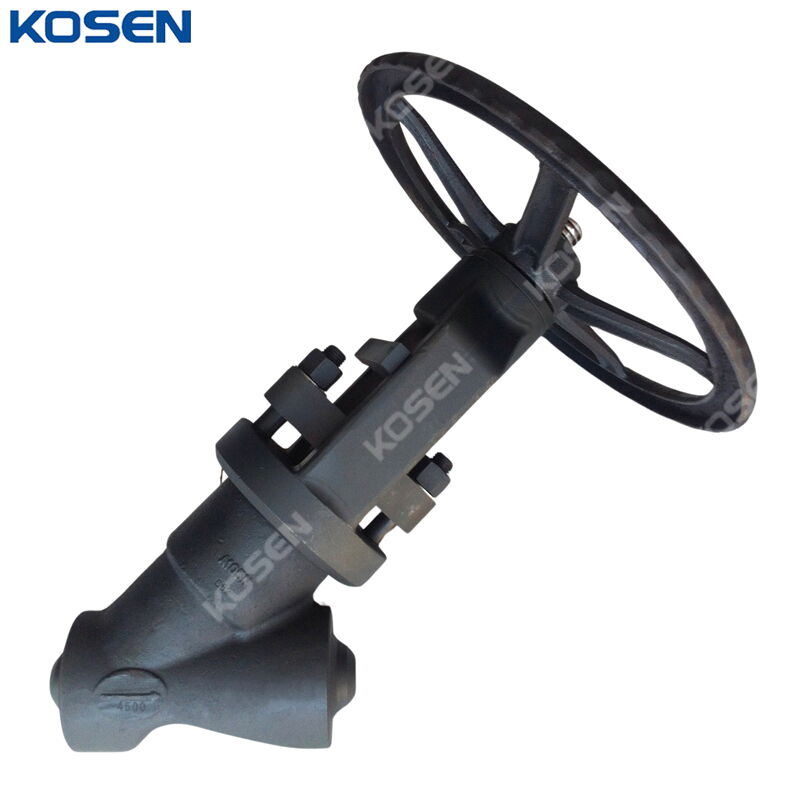

API 602 Y Globe Valve, ASTM A105N, 2500 LB, Pressure Sealed

The API 602 Y Type Globe Valve is a high-performance valve designed for demanding industrial applications. It features a forged carbon steel body made from ASTM A105N, ensuring strength and durability. The valve adheres to API 602 standards, guaranteeing reliability and safety. Available in customized sizes, it offers flexibility to meet specific requirements. With a pressure rating of 2500 LB (PN420), it is suitable for high-pressure systems requiring precise flow control. The pressure seal bonnet design enhances the valve's ability to maintain a tight seal under high pressure.

Product Name: Y Type Pressure Seal Globe Valve
Design Standard: API 602
Body Material: ASTM A105N
Size: Customized
Pressure: Class 2500 LB, PN420
End Connection: SW
Operation: Manual
Medium: Water, Oil, Gas, etc
Temperature Range: -29°C to 595°C

Pressure Seal Globe Valves are engineered and produced in strict adherence to international standards such as API 602, ASME B16.34, DIN3202, or their equivalents. These valves feature a compact yet extremely robust design, making them suitable for high-pressure and high-temperature applications. The optional solid CoCr alloy wedge ensures low friction and extended service life. The packing rings are precompressed to 4000 psi, providing a highly reliable seal. For welded bonnet valves, the bonnet is threaded in and torqued to a specific engineered torque value, and the body-bonnet joint is strength-welded, offering dual protection against leakage (body, bonnet threads, and strength-weld). The fully guided wedge reduces wear on seating surfaces. Optional designs are available with double packing, leak-off connections, live-loading, and a packing blowout feature for easy removal of old packing.

Technical Specification

» Size Range: 1/2-2 Inch (Forged Items)
» Temperature Range: -29°C to 595°C
» Design Pressure: Class 900-2500 LB (PN160-PN420)
» Materials: Forged Carbon Steel, Forged Alloy Steel, Forged Stainless Steel, Forged Duplex & Super Duplex Steel
» Trim Materials: 13%Cr, ASTM A182 F11, F22, SS 304, SS 304L, SS 316, SS 316L, and other special alloys
» Ends Connections: SW (Socket Weld), BW (Butt Weld), RTJ Flange
» Design & Manufacture Standards: ASME B16.34, API 602
» Face-to-Face (End-to-End): ANSI B16.10
» Flanged Connection: ANSI B16.5
» Test & Inspection: API 598, API 6D
» Butt Weld End: ANSI B16.5
» Socket-Weld Ends: ASME B16.11

Product Features

» Corrosion Resistance: After fine processing, the forged steel materials exhibit excellent corrosion resistance, making them suitable for a variety of corrosive media and thereby extending the service life of the valves.
» Compact Design: Forged steel globe valves are typically designed to be compact, with a smaller footprint and reduced space requirements. This makes them easy to install and use, particularly in environments where space is limited.
