Adjustable Pressure Reducing Valve, A351 CF8, DN65, PN10, RF

Product Name: Adjustable Pressure Reducing Valve
Body Material: ASTM A351 CF8
Size: 2-1/2 Inch, DN65
Pressure: Class 150 LB, PN10
End Connection: RF Flanged

The Adjustable Pressure Reducing Valve is an intelligent valve designed to regulate and control pipeline pressure using the energy of the medium itself. It is primarily used in domestic water supply, fire water supply, and other industrial water supply systems. The valve features an adjustable pressure-reducing pilot valve that allows users to set the desired outlet pressure. The outlet pressure remains stable and unaffected by fluctuations in inlet pressure or flow rate, ensuring reliable performance. This valve is easy to install and adjust, offering precise pressure reduction, stable performance, safety, and long service life.

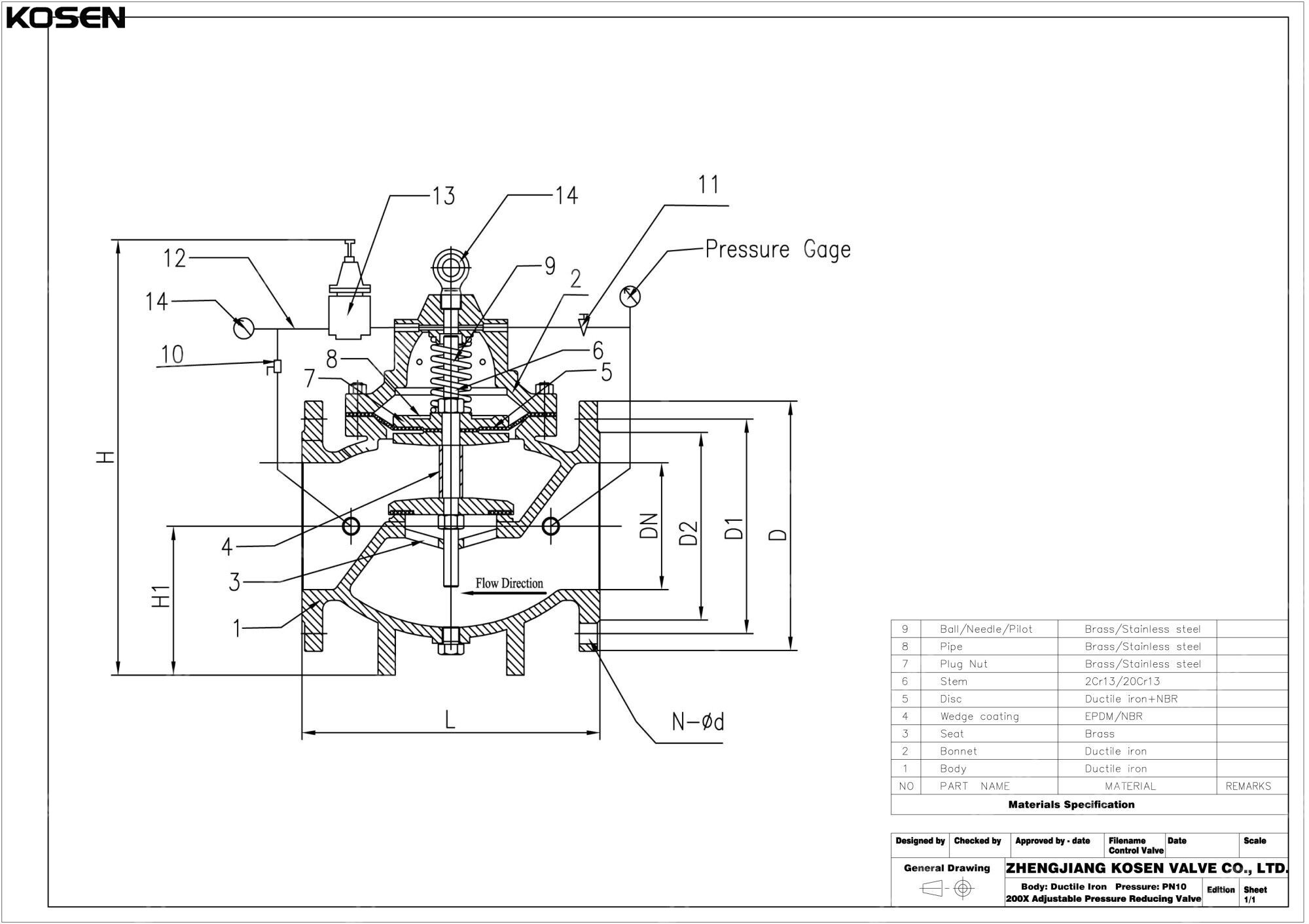

Product Structure

The Pressure Reducing and Stabilizing Valve consists of a hydraulic control system, including the main valve, pilot valve, needle valve, ball valve, microfilter, and pressure gauge. The valve automatically maintains a stable outlet pressure once the set value is configured. It operates using the pilot valve for self-control, meaning no additional energy sources or devices are required. This design results in easy maintenance, high accuracy in pressure control, and minimal impact from variations in inlet pressure or flow. The valve reliably reduces and stabilizes pressure under varying conditions.

Standards Compliance

Available Materials: Ductile Iron, Carbon Steel, Stainless Steel
Size Range: DN50-DN600 (2-24 Inch)
Pressure Range: PN10, PN16, Class 150 LB, 300 LB
Connection Type: RF Flange
Temperature Range: -20°C to 80°C
Medium: Clear Water, Sewage, Seawater, etc.
