ISO 17292 Floating Ball Valve, DN40, PN25, A351-CF8M, RF
Key Specifications / Features
DN40 PN25 floating ball valve is made according to ISO 17292 standard. The valve body is made of A351-CF8M. It has the structural characteristics of 2-piece, side entry, floating ball, full bore, flameproof, antistatic, anti-blowout stem. Its connection mode is RF. And it has lever operation mode.
Detail Information
ASTM A351 CF8M Cast Steel Floating Ball Valve, Full Bore
Product Description
Features
1. The switch operation of the ball valve is light and flexible, and the flow of the medium can be controlled without a large force;
2. The floating ball valve adopts a simple structure design, which is convenient for maintenance. At the same time, due to its special ball floating design, it has a long service life and high reliability.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
Product Description
| Type | Floating Ball Valve |
| Size | DN40 |
| Pressure | PN25 |
| Connection | RF |
| Operation | Lever |
| Body Material | A351-CF8M |
| Design Norm | ISO 17292 |
| Face to Face Dimensions | EN 558 |
| Flange Ends Dimensions | BS EN 1092-1 |
| Fire Safe | API 607 |
| Pressure Test | API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The switch operation of the ball valve is light and flexible, and the flow of the medium can be controlled without a large force;
2. The floating ball valve adopts a simple structure design, which is convenient for maintenance. At the same time, due to its special ball floating design, it has a long service life and high reliability.
Technical Drawing

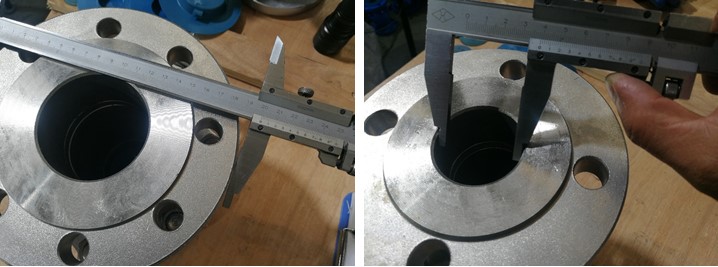

Dimension Checking
Pressure Testing

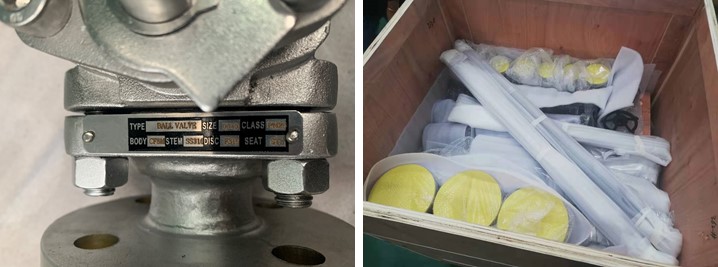

Nameplate & Packing
Inspection report
