Dual Plate Wafer Check Valve, API 594, CF8M, DN350, PN16

Name: Dual Plate Wafer Check Valve, API 594, CF8M, DN350, PN16
Brand: www.kellyvalve.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

DN350 PN16 wafer check valve is made according to API 594 standard. The valve body is made of DI+NBR. It has the structural characteristics of double disc. Its connection mode is wafer.

API 594 Check Valve 14 Inch Check Valve DN350 Check Valve ASTM A351 CF8M Check Valve Ductile Iron Check Valve PN16 Check Valve Wafer Check Valve Dual Plate Check Valves Class 400 LB Check Valve PN64 Check Valve

Detail Information

API 594 Dual Plate Wafer Check Valve PN16 DN350 CF8M

Product Description

Type	Wafer Check Valve
Size	DN350
Pressure	PN16
Connection	Wafer
Body Material	DI+NBR
Design Norm	API594
Pressure-temperature	ANSI B16.34
Flange ends	En 1092-1
Face to face dimension	API594
Test & Inspection Code	API598
Applicable Medium	Water, Oil and Gas

Features

1. Short structural length, small volume, light weight, fast valve closure, and low water hammer pressure;
2. Easy installation, unobstructed flow channel, low fluid resistance, sensitive action, and good sealing performance.

Technical Drawing

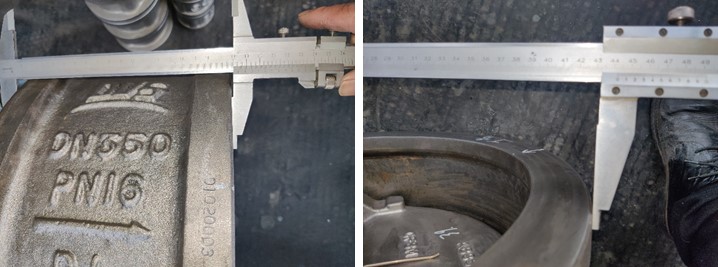

Dimension Checking

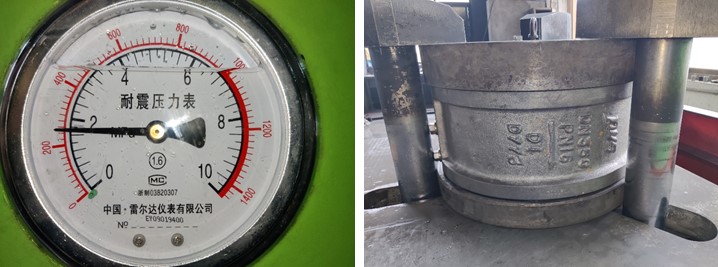

Pressure Testing

Painting
