BS 5156 Diaphragm Valve, DN25, PN10, ASTM A216 WCB, RF
Key Specifications / Features
DN25 PN10 diaphragm valve is made according to BS 5156 standard. The valve body is made of ASTM A216 WCB+IIR. It has the structural characteristics of direct diaphragm valve G46. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Quick Detail
Product Description
| Type | Diaphragm Valve |
| Size | DN25 |
| Pressure | PN10 |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | WCB+ⅠⅠR |
| Design Norm | BS 5156 |
| Face to Face | BS 5156 |
| Flange Dimension | EN 1092-1 |
| Test & Inspection Code | MSS-SP-88-2015 |
| Temperature | -10 - 80°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
Body WCB, DN25 PN10 Diaphragm Valve, BS 5156, RF Connection
Features
1. Reasonable flow channel design, low fluid resistance, low pressure loss, beneficial for energy conservation;
2. Simple structure, fewer components, convenient operation, reduced maintenance time and cost.

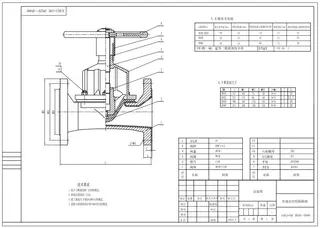

Technical Drawing

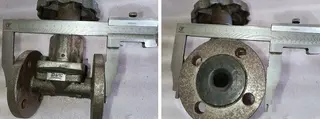

Dimension Checking

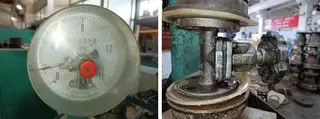

Pressure Testing

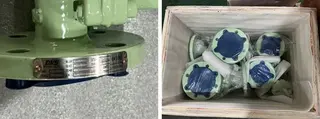

Nameplate & Packing

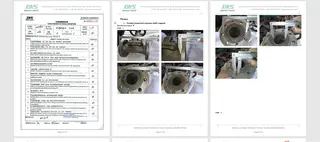

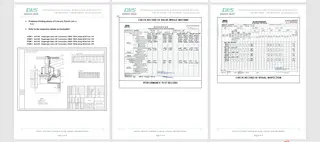

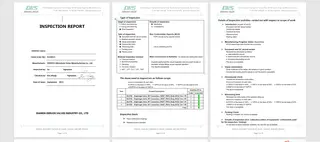

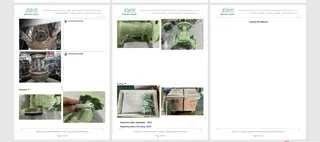

Inspection report
Features
1. Reasonable flow channel design, low fluid resistance, low pressure loss, beneficial for energy conservation;
2. Simple structure, fewer components, convenient operation, reduced maintenance time and cost.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
