ASTM A105 Thermodynamic Steam Trap Valve, DN20, PN40
Key Specifications / Features
DN20 PN40 thermodynamic steam trap valve is made according to GB/T 22654-2008 standard. The valve body is made of ASTM A105. It has the structural characteristics of a thermodynamic type. Its connection mode is EN 1092-1.
Request a quote
Quick Detail
Product Description
| Type | Steam Trap Valve |
| Size | DN20 |
| Pressure | PN40 |
| Connection | EN1092-1 B |
| Body Material | A105 |
| Design Norm | GB/T22654-2008 |
| Face To Face Dimensions | GB/T12250-2005 |
| End Flange Dimensions | EN1092-1 |
| Test & Inspection Code | GB/T12251-2005 |
| Temperature | -29 - 120°C |
| Applicable Medium | Water, Oil and Gas |
Detail Information
EN 1092-1 B Connection, DN20 PN40 Thermodynamic Steam Trap Valve, Body
Features
1. Small in size and light in weight, it can be installed in any position (horizontal or vertical), making it easy to install and arrange;
2. Capable of withstanding water hammer and vibration in steam systems, not easily damaged, suitable for various dynamic working conditions.

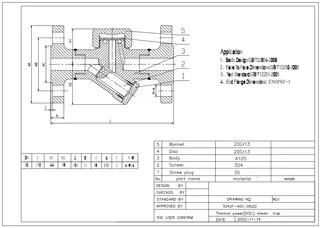

Technical Drawing

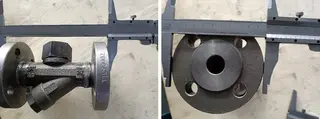

Dimension Checking

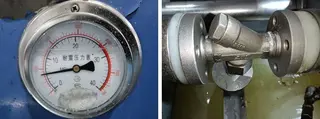

Pressure Testing

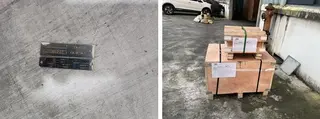

Nameplate & Packing

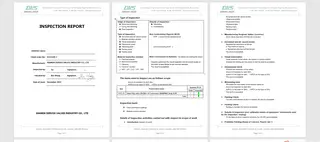

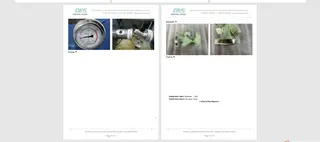

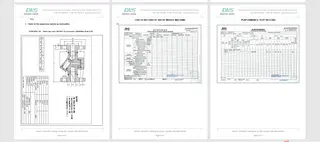

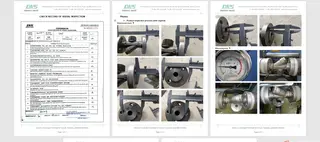

Inspection report
Features
1. Small in size and light in weight, it can be installed in any position (horizontal or vertical), making it easy to install and arrange;
2. Capable of withstanding water hammer and vibration in steam systems, not easily damaged, suitable for various dynamic working conditions.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
