BS 1873 Globe Valve, ASTM A351 CF8M, 4 Inch, 150 LB, RF

Name: BS 1873 Globe Valve, ASTM A351 CF8M, 4 Inch, 150 LB, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide BS 1873 Globe Valves, Cast Steel Globe Valves, ASTM A351 CF8M, STL, 4 Inch, Class 150 LB, DN100, PN20, BS 1873, BB, RF Ends, HW-OP.

Request a quote

Quick Detail

Type	Globe Valve
Size	4"
Pressure	150LB
Connection	RF
Operation	Hand Wheel Operation
Body Material	ASTM A351 CF8M + STL
Design Norm	BS1873
Face to Face Dimension	ASME B16.10
Flange Dimension	ASME B16.5
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

4" 150 LB Cast Steel Globe Valve CF8M HW-OP BB RF

Introduction

4" 150 LB globe valve is made according to BS 1873 standard. The valve body is made of CF8M. It has the structural characteristics of a bolt cover, plug disc, standard flow, and body valve seat. Its connection mode is RF. And it has hand wheel operation mode.

Features

1. Simple structure, lightweight, good corrosion resistance;
2. Good sealing performance, low friction between sealing surfaces, long service life;
3. Small working stroke and short opening and closing time.

Technical Drawing

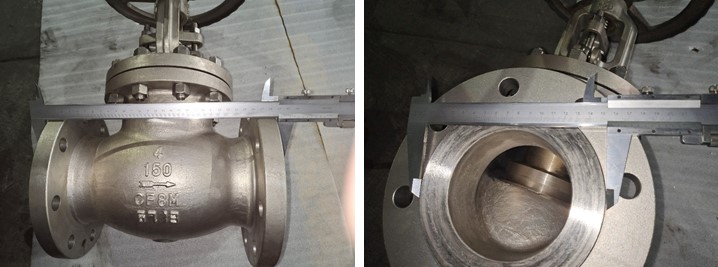

Dimension Checking

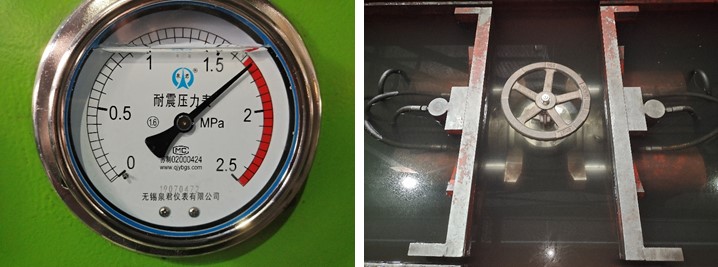

Pressure Testing

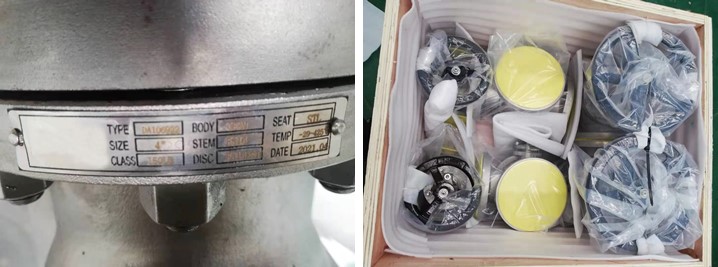

Nameplate & Packing

Inspection report
