ASTM A351 CF8M Globe Valve, 2 Inch, 150 LB, BS 1873, BB, RF

Name: ASTM A351 CF8M Globe Valve, 2 Inch, 150 LB, BS 1873, BB, RF
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We Provide ASTM A351 CF8M Globe Valves, ASTM A351 CF8M Cast Steel Globe Valves, 2 Inch, 150 LB, DN50, BS 1873, BB, RF, and Hand Wheel Operation.

Request a quote

Quick Detail

Type	Globe Valve
Size	2"
Pressure	150LB
Connection	RF
Operation	Hand Wheel Operation
Body Material	ASTM A351 CF8M + STL
Design Norm	BS1873
Face to Face Dimension	ASME B16.10
Flange Dimension	ASME B16.5
Test & Inspection Code	API 598
Temperature	-29 - 425°C
Applicable Medium	Water, Oil and Gas

Detail Information

2" 150 LB Cast Steel Globe Valve CF8M HW-OP BB RF

Introduction

2" 150 LB globe valve is made according to BS1873 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a bolt cover, plug disc, standard flow, and body valve seat. Its connection mode is RF. And it has hand wheel operation mode.

Features

1. Reasonable structure, reliable sealing, excellent performance and beautiful appearance;
2. Good wear resistance, high-temperature resistance, corrosion resistance, abrasion resistance and long service life.

Technical Drawing

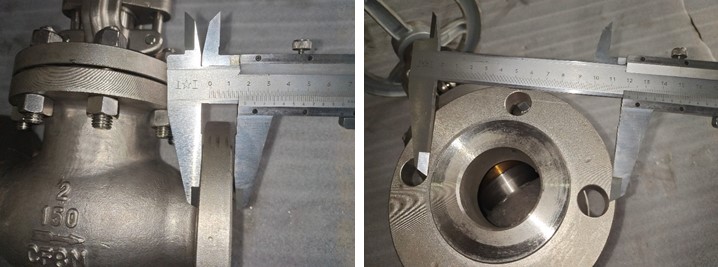

Dimension Checking

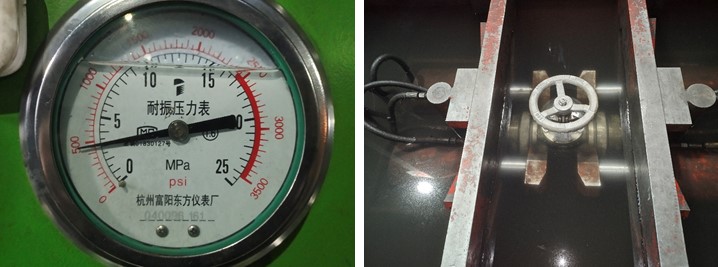

Pressure Testing

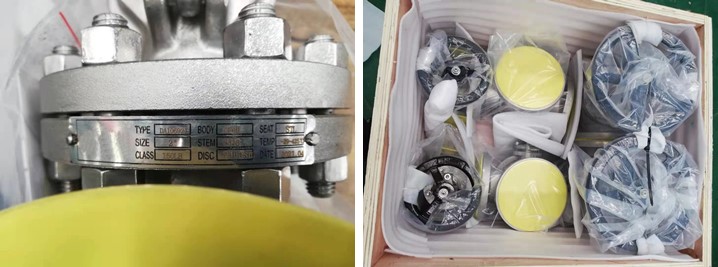

Nameplate & Packing

Inspection report
