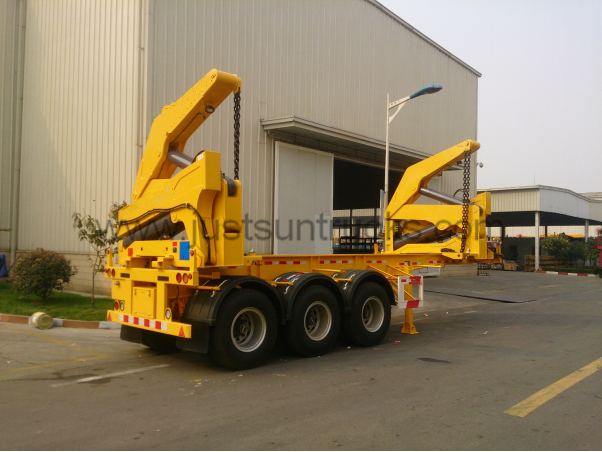

Container Side Lifter, Lifting Capacity 37 Ton, Tare Weight 12950kg
Model Number: JS-ST-06
Key Specifications / Features
Cost-effective Lifting Capacity 37 Ton Container Side Lifter, Self-Loading Container Trailer, Shipping Container Side Loader in Gross Weight 50 Ton, Tare Weight 12950kg from Justsun. Side Lifter, Side Loader, Swing Lift Trailer Is Designed for Loading, Transporting or Off-loading Containers with Precision over Long Distances.
Detail Information
Container Side Lifter
Technical Specifications
Technical Specifications
| Specifications of Sidelifters | |||
| Item | Unit | Parameters | |
| Lifting Performance | Max. lifting capacity | Kg | 37000 |
| Max. working range | Mm | 4000 | |
| Max. stabilizer outreach | Mm | 3200 | |
| Weight | Curb mass | Kg | 12950 |
| Max.load | Kg | 37000 | |
| GVW | Kg | 50000 | |
| Dimension | Outline dimension of semi-trailer(L×W×H) | Mm | 8250×2500×4000 |
| Wheel base | Mm | 4160+1310+1310 | |
| Track(front axle/rear axle) | Mm | 1820/1820/1820 | |
| Front overhang/Rear overhang | Mm | -/980 | |
| Approach angle/Departure angle | ° | -/35 | |
