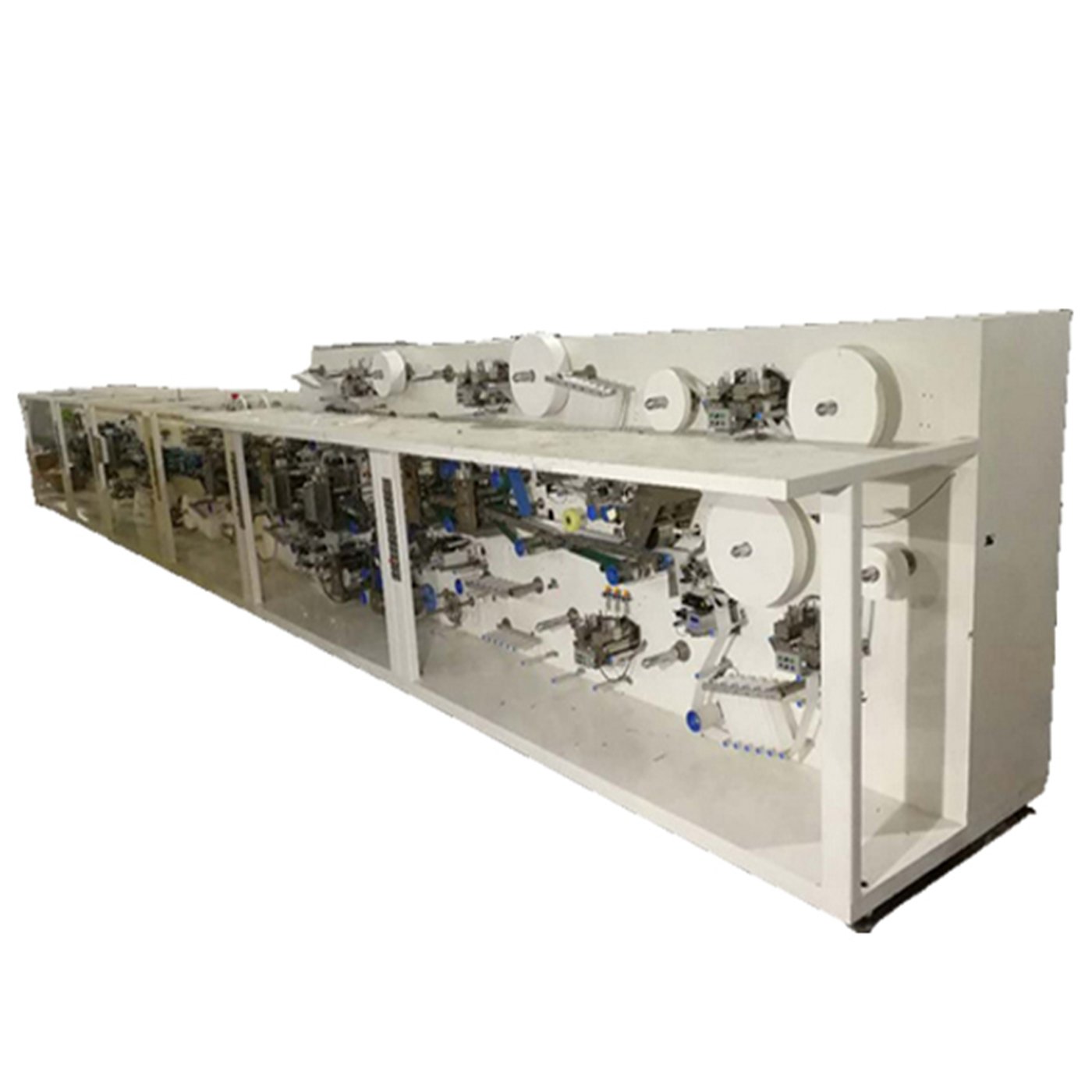

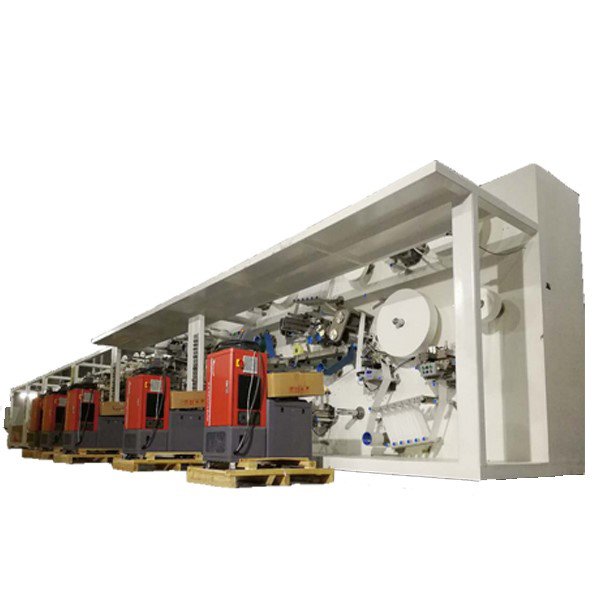

Modern Design Automatic Add Glue Sanitary Napkin Machine
Key Specifications / Features
Detail Information
Modern Design Automatic Add Glue Sanitary Napkin Machine
| Subject | Parameter |
| Overall size(L*W*H) | 30M*6M*3M(For reference only) |
| Machine size(L*W*H) | 22m*2m*2.5m,based on the product provided by client |
| Design speed | 700pcs/min |
| Stable speed | 600pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 200KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 40T |
| Machine color | Customized |
Configuration:
Product Structure:
Topsheet, ADL (Blue core layer), Layer tissue, fluff pulp (mixed with SAP)/SAP paper, back sheet, wings/back release paper.
Product Size:
Daytime use: 240mm, Night use: 285mm (Customizable)
Control System:
Utilizes PLC programming control and HMI operation.
Tension System:
Tension control for carrier tissue, absorbent paper, topsheet NW, leg cuffs NW, ADL, PE film, back release paper, Wings release paper, and pouch film. A&B shafts are actively unwound by inverter motors.
Drive System:
Equipped with servo drive for conveyance, high-quality imported timing belts, and bearings.
Safety System:
Safety measures include safety guards installed at the operating side, an emergency stop switch, and a security identifier. The driven side features a safety pull wire.
Materials Correction System:
The machine offers an optional Germany BST automatic web guide system for materials correction.
