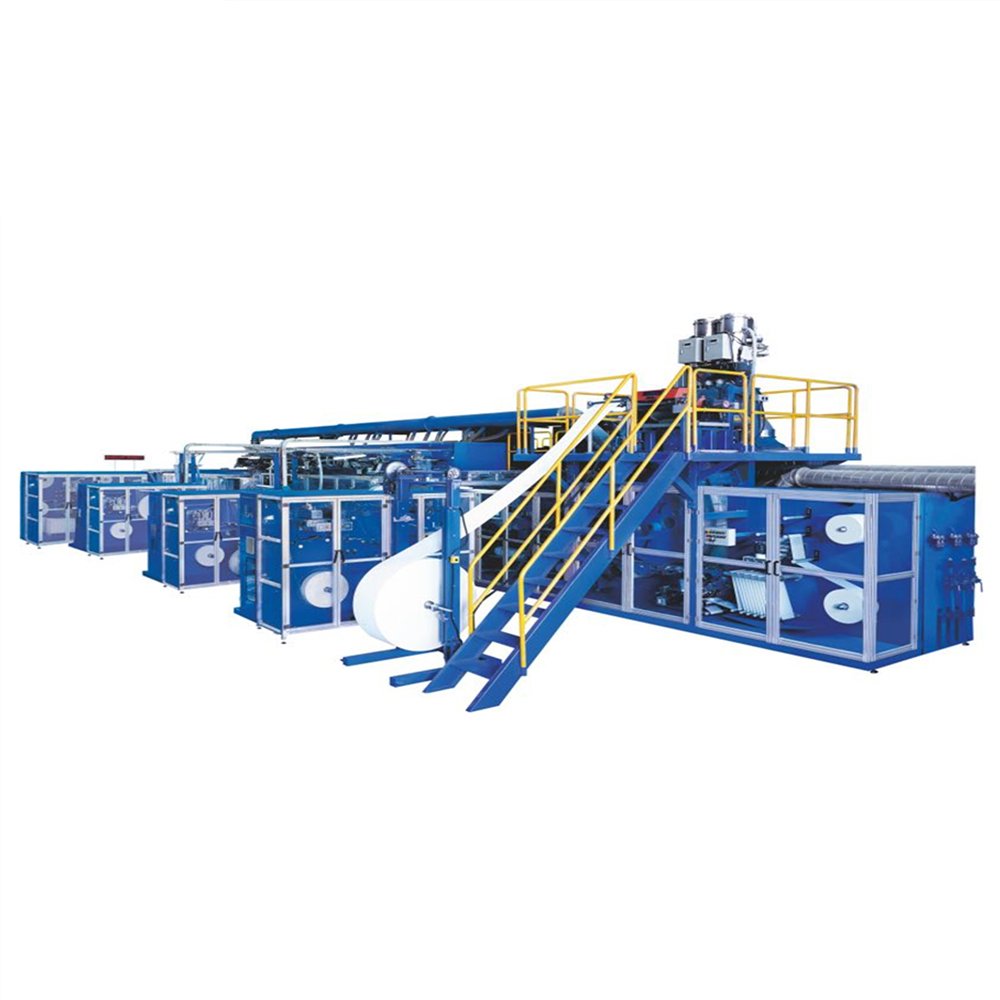

Classic Full Servo Soft Care Pads Sanitary Napkin Machine

Name: Classic Full Servo Soft Care Pads Sanitary Napkin Machine
SKU: HM-231018-SNM-11
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our time-tested Soft Care Pads Sanitary Napkin Machine. These full servo machines feature tension unwinding with constant tension control, enabling a design speed of 700 pieces per minute. Trust in the classics for quality and performance.

Request a quote

Detail Information

Classic Full Servo Soft Care Pads Sanitary Napkin Machine

Subject	Parameter
Overall size(LWH)	30M6M3M(For reference only)
Machine size(LWH)	22m2m2.5m,based on the product provided by client
Design speed	700pcs/min
Stable speed	600pcs/min
Pass percentage	98%
Work efficiency	90%
Power source	380V,50HZ,(3phase,4lines+ground wire)
Machine capacity	about 200KW
Air pressure	0.6-0.8Mpa
Machine weight	About 40T
Machine color	Customized

Configuration:

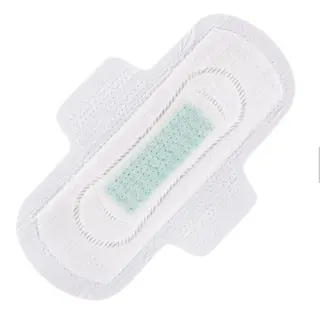

Product Structure:
Topsheet, ADL (Blue core layer), Layer tissue, fluff pulp (mixed with SAP)/SAP paper, back sheet, wings/back release paper.

Product Size:
Daytime use: 240mm, Night use: 285mm (Customizable)

Control System:
Utilizes PLC programming control and HMI operation.

Tension System:
Tension control for carrier tissue, absorbent paper, topsheet NW, leg cuffs NW, ADL, PE film, back release paper, Wings release paper, and pouch film. A&B shafts are actively unwound by inverter motors.

Drive System:
Equipped with servo drive for conveyance, high-quality imported timing belts, and bearings.

Safety System:
Safety measures include safety guards installed at the operating side, an emergency stop switch, and a security identifier. The driven side features a safety pull wire.

Materials Correction System:
The machine offers an optional Germany BST automatic web guide system for materials correction.
