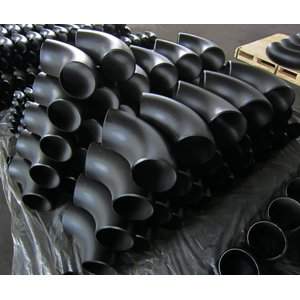

ASTM A234 WPB Elbow Long Radius, 90D, ASME B16.9, 6IN, SCH-STD

ASTM A234 WPB Elbow Long Radius, 90D, ASME B16.9, 6IN, SCH-STD

Model Number: DW PE-3

Key Specifications / Features

China ASTM A234 WPB Long Radius Elbow Manufacturer Duwa Piping: ASTM A234 WPB Elbow Long Radius, 90 Degree, ASME B16.9, Size 6IN, W.T SCH STD, Beveled Ends.
90 Degree Elbow 45 degree Elbow pipe elbow
Share:
Contact Supplier

Detail Information

Type: Pipe Elbow.
Material: ASTM A234 WPB.
Standard: ASME B16.9.
Size: 6IN.
Wall Thickness: SCH-STD.

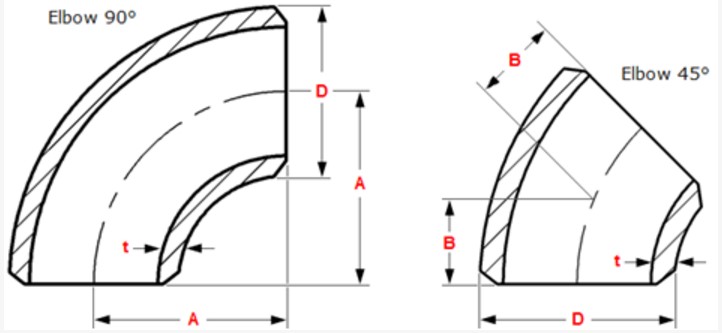

ASME B16.9 Long Radius Elbows 90 degree/45 degree Dimensions

NPS OD, D Center to End
90 deg Elbows,  A 45 deg Elbows,  B
 1/2 21.3 38 16
 3/4 26.7 38 19
1 33.4 38 22
1 ¼ 42.2 48 25
1 ½ 48.3 57 29
2 60.3 76 35
2 ½ 73 95 44
3 88.9 114 51
3 ½ 101.6 133 57
4 114.3 152 64
5 141.3 190 79
6 168.3 229 95
8 219.1 305 127
10 273 381 159
12 323.8 457 190
14 355.6 533 222
16 406.4 610 254
18 457 686 286
20 508 762 318
22 559 838 343
24 610 914 381
26 660 991 406
28 711 1067 438
30 762 1143 470
32 813 1219 502
34 864 1295 533
36 914 1372 565
38 965 1448 600
40 1016 1524 632
42 1067 1600 660
44 1118 1676 695
46 1168 1753 727
48 1219 1829 759

Supplier Information

Shijiazhuang Duwa Piping Co., Ltd.

Verified Supplier

No.25 Tangu South Street, Shijiazhuang, Hebei Province, P. R. China.
Est.

Certifications:

Send Inquiry View Contact
dw*********01
377 article(s)
Previous Product
API 600 Gate Valves, A217 WC6 Body, DN125, PN150, Trim 8
Next Product

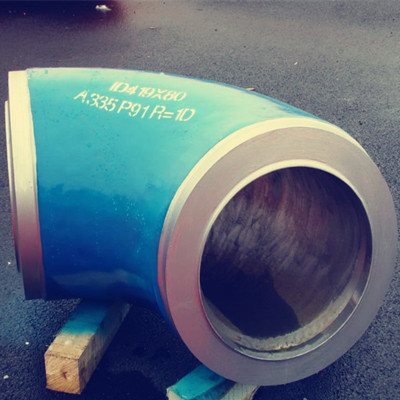

ASTM A234 WP91 Elbow Fittings, ID419, Thickness 80mm

Comments

Leave a Comment

Related Products

AWWA C208 Elbow, 48 inch 90 degree, ASTM A234 WPB

AWWA C208 Elbow, 48 inch 90 degree, ASTM A234 WPB

Shijiazhuang Duwa Piping Co., Ltd.
SMLS ASTM A403 WP316L Flanged elbow NACE MR0175 8inch sch40s

SMLS ASTM A403 WP316L Flanged elbow NACE MR0175 8inch sch40s

Shijiazhuang Duwa Piping Co., Ltd.

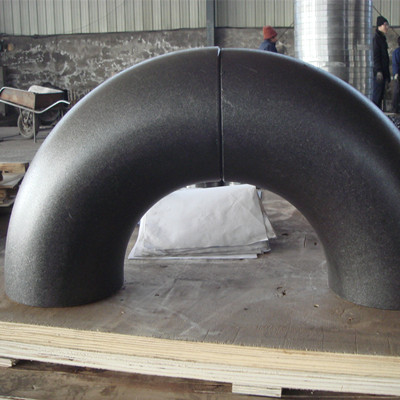

Pipe Elbow CS, SS, AS, ANSI B16.9, MSS SP-97, 24-90 Inch, 15-180 Degree

Pipe Elbow CS, SS, AS, ANSI B16.9, MSS SP-97, 24-90 Inch, 15-180 Degree

Shijiazhuang Duwa Piping Co., Ltd.

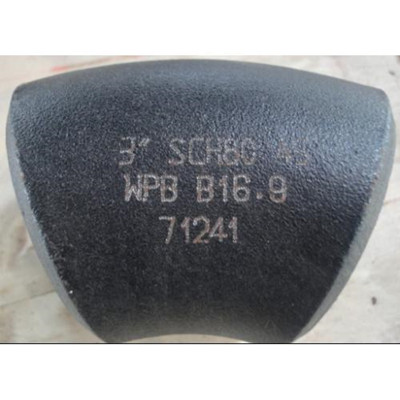

Carbon Steel 45 Degree Pipe Elbow, ANSI B16.9, Long, Short Radius
