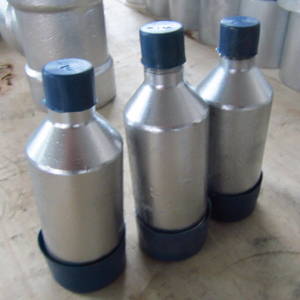

ASTM A234 Concentric Swage Nipple, MSS-SP-95, SCH 80
Key Specifications / Features
China Concentric Swage Nipple Manufacturer Derbo offers ASTM A234 Concentric Swage Nipple, 1.5 × 2 Inch, SCH 80, Standard MSS-SP-95, Threaded Ends.
Request a quote
Detail Information
Type: Concentric Swage Nipple.
Material: ASTM A234 WPB.
Size: 1 1/2 × 2 Inch.
W.T.: SCH 80.
Standard: MSS-SP-95.
Ends: Threaded Ends.
Material: ASTM A234 WPB.
Size: 1 1/2 × 2 Inch.
W.T.: SCH 80.
Standard: MSS-SP-95.
Ends: Threaded Ends.
| Chemical Composition and Mechanical Property For ASTM A234 | |||||||||||||
| Steel Grade | Chemical Composition | Mechanical performance | |||||||||||
| C(Max) | Mn | P(Max) | S(Max) | Si(Min) | Cr(Max) | Mo(Max) | Ni(Max) | Cu(Max) | Tensile strength (Min） |
Yield Strength (Min) |
|||
| Mpa | ksi | Mpa | ksi | ||||||||||
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1 | 0.4 | 0.15 | 0.4 | 0.4 | 415-585 | 60-85 | 240 | 35 |
