Feed Water Control Valves, ASTM A105, 2 Inch, Class 1500 LB
Key Specifications / Features
Our Forged Feed Water Control Valves are engineered for exceptional durability and performance. Made from ASTM A105 and featuring a 2-inch size with a Class 1500 LB rating, these valves include stem, seat, and disc components of SS 304 stainless steel. With DN50 and PN250 specifications, they are designed as sleeve-type valves for reliable and efficient feed water control.
Detail Information
Product Name: Feed Water Control Valve
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Body Material: ASTM A105
Bonnet: ASTM A105
Stem: Stainless Steel, SS 304 , 20Cr13
Disc: SS 304, 20Cr13
Seat: SS 304, 20Cr13
Sleeve: SS 304
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
Body Material: ASTM A105
Bonnet: ASTM A105
Stem: Stainless Steel, SS 304 , 20Cr13
Disc: SS 304, 20Cr13
Seat: SS 304, 20Cr13
Sleeve: SS 304

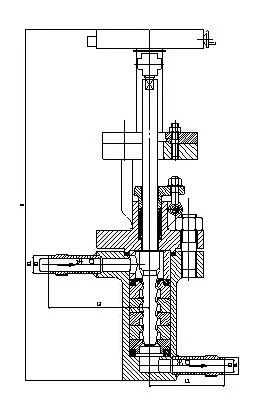

Dimension:
| PN(Mpa) | DN(mm) | L | H | L1 | L2 | D1 | D2 | Electric Actuator |
| Electric | ||||||||
| 10 | 20 | 460 | 870 | 118 | 160 | 28 | 20 | 10M |
| 10 | 32 | 530 | 950 | 136 | 163 | 42 | 32 | 10M16ZKZ-310B(C) |
| 50 | 530 | 970 | 136 | 163 | 62 | 50 | 10M16ZKZ-310B(C) |
|
PN
Mpa |
DN
(mm) |
TAM°C | CV | Max Pressure Difference Mpa |
Route
(mm) |
Max Flow
t/h |
||||
| 1 | 2 | 3 | 4 | 5 | ||||||
| 10 | 20 | water | 1.6 | 1 | 0.6 | 0.4 | 0.1 | 5 | 10 | 4.3 |
| 20 | 32 | ≤250 | 6.3 | 4 | 1.6 | 5 | 18 | 17 | ||
| 50 | 14 | 10 | 6.3 | 5 | 18 | 37.8 | ||||
