Electric Ball Control Valve, ASTM A351 CF3M, 1/2-4 IN, CL150
Key Specifications / Features
Experience precision control with our cutting-edge electric ball control valves, meticulously crafted to perfection. Designed for efficiency and reliability, our valves are fabricated from top-grade ASTM A351 CF3M stainless steel, ensuring exceptional durability and corrosion resistance. With sizes ranging from 1/2 to 4 inches and a Class 150 LB rating, they're perfectly suited for a variety of applications.
Request a quote
Detail Information
Product Name: Electric Ball Control Valve
Material: ASTM A351 CF3M, ASTM A351 CF8, ASTM A351 CF8, ASTM A351 CF8M, Stainless Steel SS 304, SS 304L, SS 316, SS 316L
Seat Material: PTFE, Nylon, PPL
Nominal Size: 1/2-4 Inch, DN15-DN100
Pressure Rating: Class 150 LB, PN10, PN16
O Ring: PTFE
Connection Type: Tri Clamp, Weld
Working Temperature: -40°C - 180°C

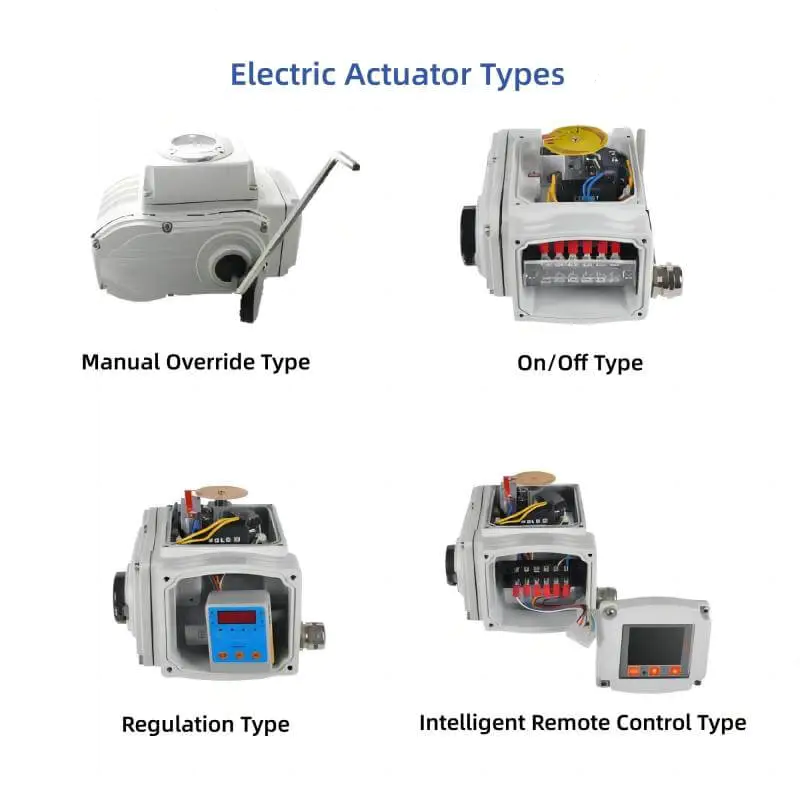

Electric Actuator: On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof
Applications: Water Treatment, Oil&Gas, Biotechnology, etc
Valve Body Features:
Corrosion Resistance: Ideal for use in corrosive substances or extreme temperature environments.
Minimal Fluid Resistance: Offers comparable resistance to a pipe segment of equivalent length.
Standards: Compliant with GB/ANSI/JIS/DIN standards.
Customizable: Tailored to meet specific requirements such as high pressure, high temperature, or severe corrosion.
Material: ASTM A351 CF3M, ASTM A351 CF8, ASTM A351 CF8, ASTM A351 CF8M, Stainless Steel SS 304, SS 304L, SS 316, SS 316L
Seat Material: PTFE, Nylon, PPL
Nominal Size: 1/2-4 Inch, DN15-DN100
Pressure Rating: Class 150 LB, PN10, PN16
O Ring: PTFE
Connection Type: Tri Clamp, Weld
Working Temperature: -40°C - 180°C
Electric Actuator: On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof
Applications: Water Treatment, Oil&Gas, Biotechnology, etc
Valve Body Features:
Corrosion Resistance: Ideal for use in corrosive substances or extreme temperature environments.
Minimal Fluid Resistance: Offers comparable resistance to a pipe segment of equivalent length.
Standards: Compliant with GB/ANSI/JIS/DIN standards.
Customizable: Tailored to meet specific requirements such as high pressure, high temperature, or severe corrosion.
