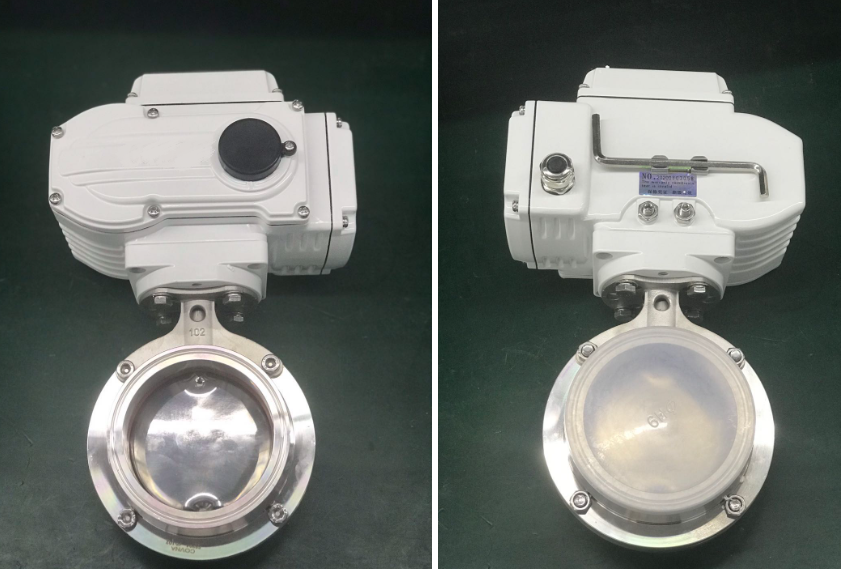

Sanitary Electric Butterfly Control Valve, 150 LB, 2-16 Inch

Name: Sanitary Electric Butterfly Control Valve, 150 LB, 2-16 Inch
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our Sanitary Electric Butterfly Control Valve, engineered for precision and efficiency. Designed with modulating type control, it is available in sizes DN50-DN400 (2-16 inches). Rated for PN10, PN16, and Class 150 LB, this valve ensures robust performance under various pressures. Crafted from high-quality SS 316 stainless steel, it offers superior corrosion resistance and durability. The tri-clamp end design facilitates easy installation and maintenance, making it ideal for sanitary applications. Perfect for industries requiring stringent hygiene standards, this valve enhances operational efficiency with its reliable modulating capabilities, ensuring precise flow control and long-lasting service.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Sanitary Electric Butterfly Control Valve
Design Standard: GB, ASMI
Size Range: DN50-DN400, 2-16 Inch
Pressure Rating: PN10, PN16, Class 150 LB
Body Material: Stainless Steel
Disc Material: Stainless Steel 316
Sealing Material: PTFE, Silicone
Stem Material: Stainless Steel
End Connection: Tri-clamp
Structure: Midline structure A type
Applicable Media: Water, Air, Gas, Petroleum, Oil, Liquid
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Regulation Type: Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Working Temperature: 14°F to 356°F (-10°C to 180°C )
