Electric Sleeve Control Valve, CF3M, Screw End

Name: Electric Sleeve Control Valve, CF3M, Screw End
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Request a quote

Detail Information

Electric sleeve control valve consists of electric actuator and sleeve control valve. The vale has system to receive standard single, transferring current signal into correspondent liner displacement to control opening of valve automatically. It can realize continuous control for pressure, flow, temperature, liquid level and other technological parameters inside pipes.

Characteristics of electric sleeve control valve

1. Adopting balanced core, allow high differential pressure, steady control.

2. Core has large guide area to eliminate vibration caused by vortex or impact.

3. Compared with common single or double seat control valve, the voice is decreased by 10dB.

4. Having simple structure, convenience for maintenance.

Materials

Body	WCB	CF8	CF8M	CF3M
Gasket	PTFE/metal graphite
Sleeve	304	304	316	316L
Core	304	304	316	316L
Cap	304	304	316	316L
Bonnet	WCB	CF8	CF8M	CF3M
Stem	304	304	316	316L
Packing	PTFE/flexible graphite
Spring	65Mn	304	316	316L
Nut	304	304	316	316L

Parameter

Nominal diameter: DN20-300mm

Nominal pressure: ANSI 150Lb,250Lb,300Lb,600Lb

Face to face: flanged end, welded end, screw end

Working temperature: -40~350℃

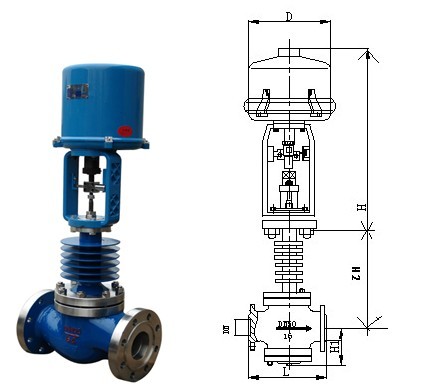

Dimensions

Nominal Diameter DN(mm)		20	25	32	40	50	65	80	100	125	150	200	250	300
L	150/250Lb	181	184	200	222	254	276	298	352	410	451	550	640	880
	300Lb	194	197	200	235	267	292	317	368	425	473	640	760	910
	600Lb	206	200	210	251	286	311	337	394	440	508	670	810	950
H	150/250Lb	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158	170	195	230
	300Lb	52.5	57.5	75	75	82.5	92.5	100	117.5	150	167.5	187.5	205	245
	600Lb	65	40	85	85	90	102.5	107.5	125	172.5	195	207.5	230	260
H1		132	132	158	170	179	214	221	234	270	294	331	390	450
H2	PSL	465	465	465	465	465	560	560	560	560	560	788	788	788
H2	3810	373	373	495	495	495	700	700	700	725	725	725	725	725
D		177	177	177	177	177	182	182	182	182	182	218	218	218
