Cast Iron Electric Diaphragm Control Valve, API 599
Key Specifications / Features
Detail Information
Cast iron electric diaphragm control valve has simple structure, low flowing resistance. Compared with other valves having the same caliber, the flowing resistance of electric diaphragm control valve is lower. The valve can adjust the medium having high viscosity or suspended particles. Based on different materials of diaphragm (rubber or PTFE), the valve is applicable for strong alkaline or strong corrosive medium. The valve is equipped with electric actuator having servo system. Only using input signal or single electric source can control the pressure, flow, temperature, level of medium without using amplifier.
Standards
Design: API 599
Flanged end: AMSI B16.5
Test & inspection: API 598
Parameter
|
|
Materials of Lining |
Materials of Diaphragm |
Working Temperature |
Applicable Medium |
|
Cast iron |
/ |
Chloroprene rubber |
0~+65℃ |
Non-corrosive medium, water, abrasive; mud |
|
HT20-40 |
PTFE |
Fluoro rubber |
-20~+150℃ |
Strong acid, strong alkali, strong oxidizer, organic solvent |
|
Stainless steel |
/ |
Fluoro rubber |
-20~+200℃ |
Acid or alkali organic solvent |

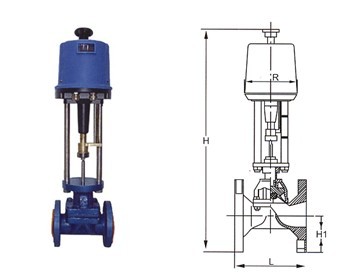

Dimensions
|
Nominal Diameter(mm) |
H1(mm) |
L(mm) |
H(mm) |
Weight(kg) |
|
15 |
47.5 |
140 |
578 |
15.5 |
|
20 |
52.5 |
145 |
578 |
16.5 |
|
25 |
57.5 |
155 |
578 |
17.5 |
|
32 |
67.5 |
165 |
587 |
22 |
|
40 |
72.5 |
190 |
602 |
24 |
|
50 |
80 |
210 |
642 |
31 |
|
65 |
90 |
240 |
650 |
54 |
|
80 |
97.5 |
270 |
655 |
59 |
|
100 |
107.5 |
335 |
737 |
73 |
