Top Guided Control Valve, Single-Seat, 1/2-8 IN, 150-600 LB
Key Specifications / Features
Introducing our Top Guided Control Valve with Quick Disassembly, designed for efficiency and precision. Featuring an unbalanced trim and straight-through design, it ensures minimal pressure drop and precise flow control. With sizes ranging from DN15 to DN200 (1/2 to 8 inches) and compatible with Class 150-300 LB flange ends, it offers versatility for various applications. The press-in type seat design enhances durability and minimizes leakage, while the flow-to-open design provides excellent controllability. Customized cages with noise reduction and anti-cavitation functions are available. Experience tight shut-off and optimal performance for medium flow or pressure control applications.
Detail Information
SPECIFICATIONS
Product Name: Top Guided Control Valve
Key Features: Quick Disassembly, Unbalanced Trim, Straight-through, Angle Type
Body Material: Carbon Steel, Cast Steel, Stainless Steel
Bonnet Type: Standard, Heat Dissipation, Cryogenic, Bellows
Flow Characteristic: Equal Percentage, Linear Quick Open
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: PN16, PN40, PN63, Class 150 LB, Class 300 LB, Class 600 LB
Leakage Class: ASME B16.104 Ⅴ(standard type metal seat), ASME B16.104 Ⅵ(shut-off soft seat)
End Connection: Flange, Butt Welding
Working Temperature: -196°C to 550°C
Actuator Type: Pneumatic Diaphragm Actuator, Pneumatic Piston Actuator, Electric Actuator
Product Name: Top Guided Control Valve
Key Features: Quick Disassembly, Unbalanced Trim, Straight-through, Angle Type
Body Material: Carbon Steel, Cast Steel, Stainless Steel
Bonnet Type: Standard, Heat Dissipation, Cryogenic, Bellows
Flow Characteristic: Equal Percentage, Linear Quick Open
Size Range: 1/2 Inch - 8 Inch, DN15-DN200
Pressure Rating: PN16, PN40, PN63, Class 150 LB, Class 300 LB, Class 600 LB
Leakage Class: ASME B16.104 Ⅴ(standard type metal seat), ASME B16.104 Ⅵ(shut-off soft seat)
End Connection: Flange, Butt Welding
Working Temperature: -196°C to 550°C
Actuator Type: Pneumatic Diaphragm Actuator, Pneumatic Piston Actuator, Electric Actuator

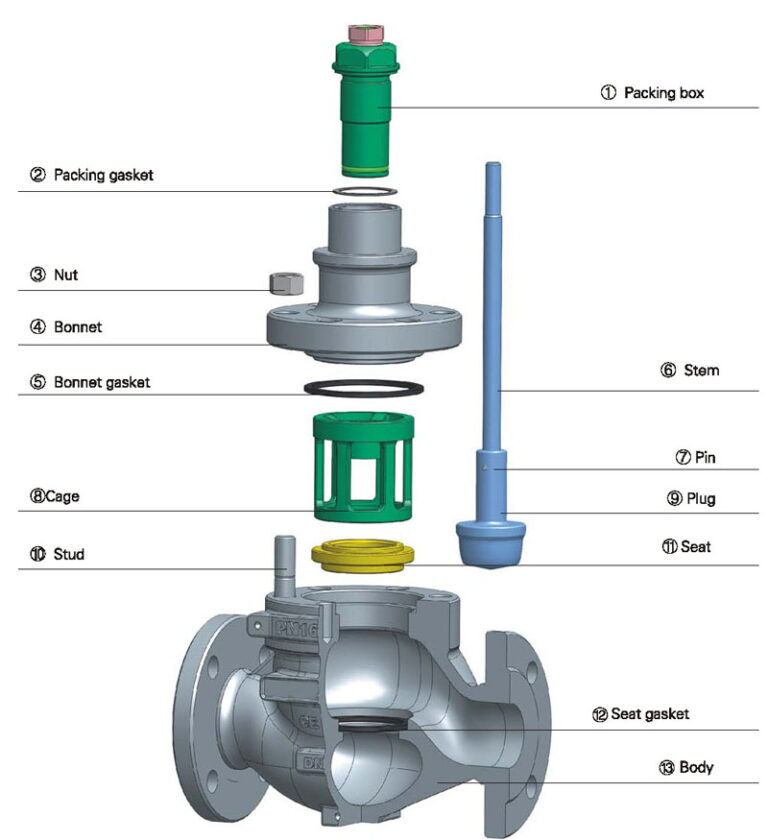

Drawing of Top Guided Control Valve
