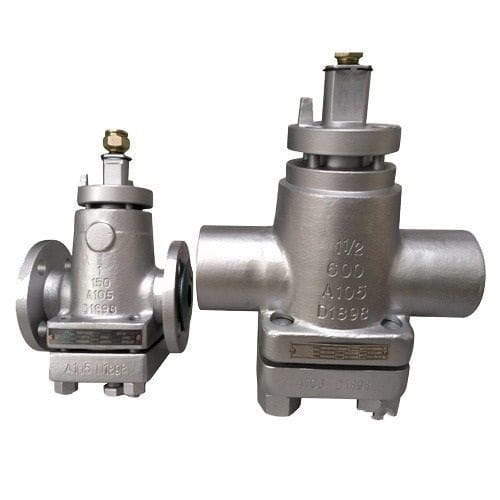

Sleeved Plug Control Valve, API 599, 1/2-24 IN, 150-1500 LB

Name: Sleeved Plug Control Valve, API 599, 1/2-24 IN, 150-1500 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Suggesting our API 599 Sleeved Plug Control Valve, engineered for reliability and performance. Available in quarter-turn design, with Full Bore and Reduced Bore options, spanning sizes from 1/2 to 24 inches (DN15-DN250) and pressure ratings from 150 to 1500 LB (PN20-PN250). Designed for compatibility with various industrial environments, particularly favored in the petrochemical industry and corrosive settings. Featuring soft seats for optimal sealing, automatic actuator selection for convenience, and optional strengthened stem packing for enhanced durability. Additionally, enjoy safety features like a blow-out-proof stem and the option for a locking device. Trust in our sleeved plug valves for dependable operation in diverse applications.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: API 599 Sleeved Plug Control Valve
Design Standard: API 599
Size Range: 1/2 Inch - 24 Inch, DN15-DN250
Class Rating: Class 150 LB - 1500 LB, PN20-PN250
Bore: Full Bore, Reduced Bore
Pattern Type: Short, Regular, Venturi
Operator: Lever, Gear, Actuator
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Leakage Class: FCI 70-2 Class IV
Face to Face Standard: ASME B16.10
Test Standard: API 598
Fire Safe Standard: API 607, ISO 10497, API 6FA
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
End Connection Standard: ASME B16.10
