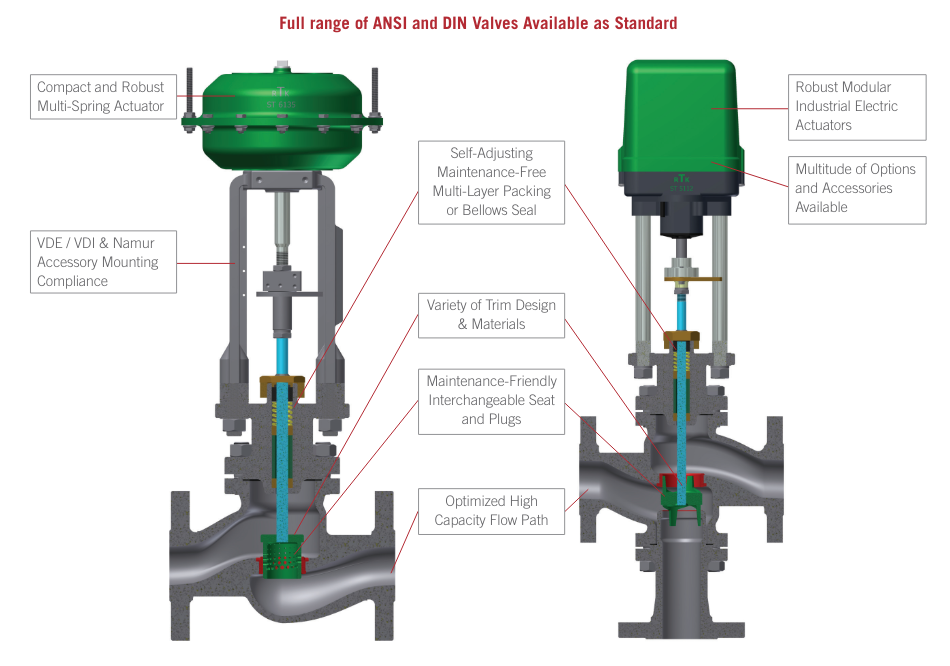

Pneumatic Stem Guided Control Valve, 1/2-12 Inch, 150-900 LB
Key Specifications / Features
Our range of two and three-way valves presents a broader spectrum of options than any other valve family in the industry. These versatile stem-guided control valves are ideal for various industrial applications. With a modular design, multiple trim styles, and a diverse selection of materials, there's a valve tailored to almost every need. Available in both ANSI and DIN standards, ensuring seamless direct replacements, our valves guarantee adaptability across different systems.
Detail Information
SPECIFICATIONS
Product Name: Stem Guided Control Valve

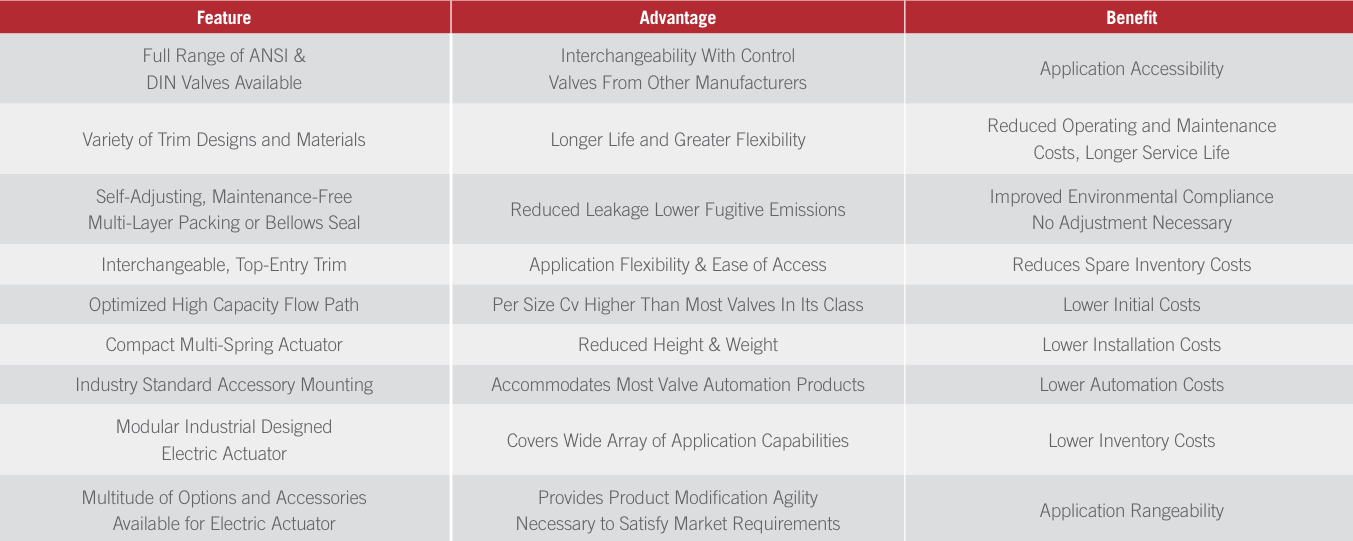

Features: Stem Guided, Full Range of ANSI & DIN valves available, Pneumatic & Electric Actuator
Size Range: 1/2-12 Inch, DN15-DN300
Pressure Rating: Class 150 LB - 900 LB, PN16-PN160
Body Material: ASTM A216 WCB, ASTM A217 WC9, ASTM A351 CF8M, Carbon Steel, Stainless Steel, Chrome Moly
End Connections:
Flanged according to ANSI B16.5 RF(Raised Face)
Butt Weld Ends according to ASME B16.25-2007
Threaded NPT connections(up to 2 Inch)
Bonnet:
Bolted Bonnet
Bonnet with cooling fins for high temperatures
Extended bonnet for valves with bellows seal
Flow Characteristics: Linear
Shutoff Class (ANSI/FCI 70-2):
Standard Trim Class IV (<0.01% Cv) metal seat
Standard Trim Class IV - S2 (<0.005% Cv) metal seat, lapped in
Soft Seat Class VI (tight closing) with PTFE max +392˚F
Diverting Plug port B Class Ill (<0.1% Cv)
Product Name: Stem Guided Control Valve
Features: Stem Guided, Full Range of ANSI & DIN valves available, Pneumatic & Electric Actuator
Size Range: 1/2-12 Inch, DN15-DN300
Pressure Rating: Class 150 LB - 900 LB, PN16-PN160
Body Material: ASTM A216 WCB, ASTM A217 WC9, ASTM A351 CF8M, Carbon Steel, Stainless Steel, Chrome Moly
End Connections:
Flanged according to ANSI B16.5 RF(Raised Face)
Butt Weld Ends according to ASME B16.25-2007
Threaded NPT connections(up to 2 Inch)
Bonnet:
Bolted Bonnet
Bonnet with cooling fins for high temperatures
Extended bonnet for valves with bellows seal
Flow Characteristics: Linear
Shutoff Class (ANSI/FCI 70-2):
Standard Trim Class IV (<0.01% Cv) metal seat
Standard Trim Class IV - S2 (<0.005% Cv) metal seat, lapped in
Soft Seat Class VI (tight closing) with PTFE max +392˚F
Diverting Plug port B Class Ill (<0.1% Cv)
