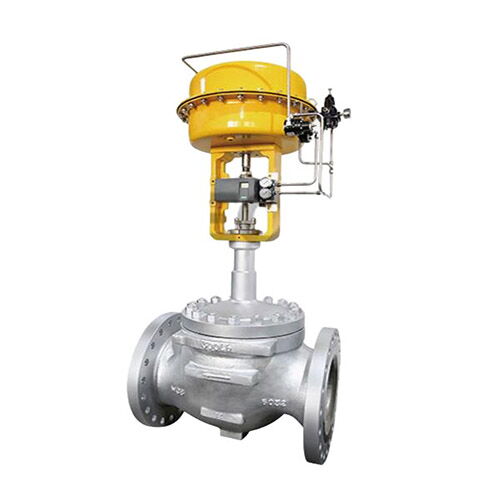

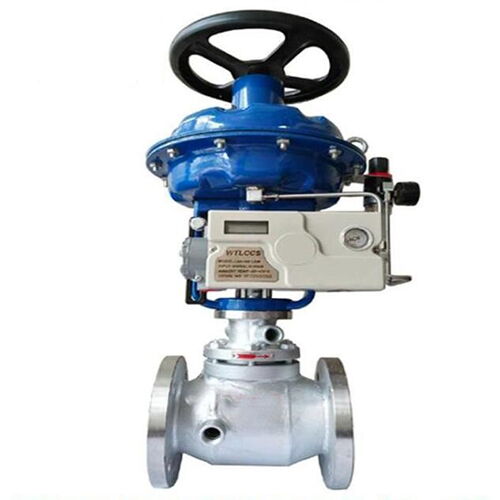

Pneumatic Jacketed Control Valve, 1/2-24 IN, 150-600 LB

Name: Pneumatic Jacketed Control Valve, 1/2-24 IN, 150-600 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The pneumatic actuator-equipped Jacketed Control Valve, featuring an upper guide structure and Siemens intelligent positioner, ensures precise control with its multi-spring film actuator. Its streamlined S channel minimizes pressure drop loss, enabling large flow and wide adjustable range, ideal for heat preservation needs. With insulation jacketing, it maintains valve temperature, preventing medium condensation even in sub-zero temperatures. This valve is adaptable, catering to heavy oil pipelines by injecting steam, heat conduction oil, hot water, or high-temperature gas. Its versatility extends to petroleum, chemical, metallurgy, and pharmaceutical industries, serving as an essential solution for fluid regulation in various temperature environments.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Pneumatic Jacket Control Valves
Key Features: Straight Through, Cage-guided, Multi-Spring
Size Range: DN15-DN600, 1/2 Inch - 24 Inch
Pressure Rating: Class 150 LB - 600 LB, PN10-PN64
Applications: Water,Steam,Oil,Gas,etc.
Working Temperature :-29°C to 50°C, -40°C to 450°C
Body material: ASTM A216 WCB, ASTM A351 CF8, CF8M, CF3, CF3M.
End Connection:
Flange: Flat Face (FF), Raised Face (RF), Male Female (MF), Ring Type Joint (RTJ)
Welding: SW, BW
