Motor-operated Feedwater Control Valve, 1/4-2IN, Carbon Steel
Key Specifications / Features
Our motor-operated feedwater control valve is designed for precise electric control in boiler feedwater applications. Available in sizes from 1/4 to 2 inches (DN8 to DN50), these valves are constructed from durable carbon steel and stainless steel, ensuring longevity and reliability. The threaded design allows for easy installation and maintenance. Engineered for optimal performance in demanding industrial environments, this valve provides accurate control of boiler feedwater, contributing to efficient and safe boiler operation. Ideal for a wide range of applications, this valve ensures dependable and efficient feedwater management.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Motor-operated Boiler Feedwater Control Valve
Key Features: Electronic Control, Boiler Feedwater
Size Range: 1/4 Inch - 2 Inch, DN8-DN50
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Bronze
End Connection: Threaded, Flanged, Socket Weld, Butt-Weld
Cv (Kv): up to 395 (up to 340)
Set Material: Jorcote
Command Signals: Current or voltage command, on/off
Packing Material:
Spring loaded Teflon V-Ring to 500°F (260°C)
Grafoil above 500°F (260°C)
Service: Steam, Water, Oil, Gas, Air and Chemicals
Shutoff: ANSI Class IV
Ambient Temperature Limit for Motors: -40°F to 150°F
Features & Benefits:
1. Robust Industrial Motor: Die-cast magnesium housing, NEMA 3 weather protection rating, UL® listed, and CSA approved for durability and reliability.
2. Oil-Immersed Motor and Gear Train: Ensures long-term, dependable performance.
3. Straight-Through Flow: Sliding gate seats minimize turbulence, ensuring quiet operation.
4. Fast Response: Short stroke enables quick response and precise regulation.
5. Interchangeable Cv Values: Easily exchangeable for varying flow requirements.
6. Secure Shutoff: Provides reliable sealing for optimal performance.

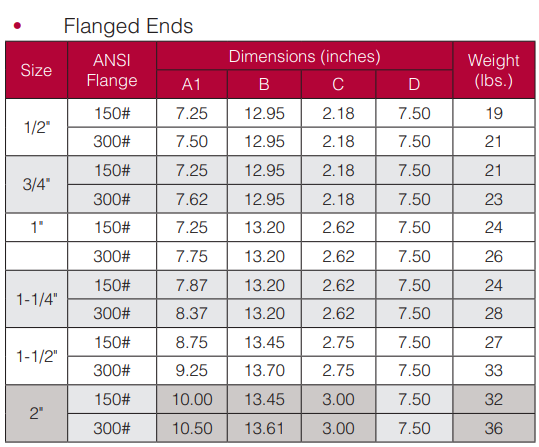

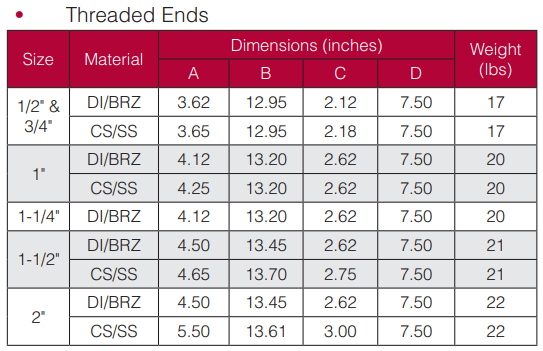

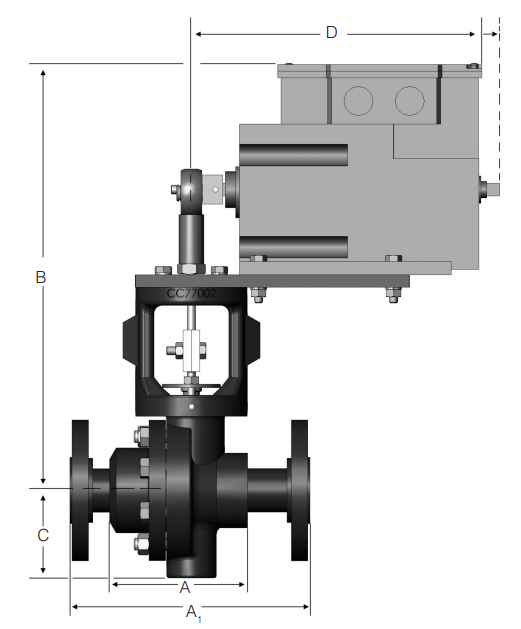

Dimensions:
Product Name: Motor-operated Boiler Feedwater Control Valve
Key Features: Electronic Control, Boiler Feedwater
Size Range: 1/4 Inch - 2 Inch, DN8-DN50
Body Material: Carbon Steel, Stainless Steel, Ductile Iron, Bronze
End Connection: Threaded, Flanged, Socket Weld, Butt-Weld
Cv (Kv): up to 395 (up to 340)
Set Material: Jorcote
Command Signals: Current or voltage command, on/off
Packing Material:
Spring loaded Teflon V-Ring to 500°F (260°C)
Grafoil above 500°F (260°C)
Service: Steam, Water, Oil, Gas, Air and Chemicals
Shutoff: ANSI Class IV
Ambient Temperature Limit for Motors: -40°F to 150°F
Features & Benefits:
1. Robust Industrial Motor: Die-cast magnesium housing, NEMA 3 weather protection rating, UL® listed, and CSA approved for durability and reliability.
2. Oil-Immersed Motor and Gear Train: Ensures long-term, dependable performance.
3. Straight-Through Flow: Sliding gate seats minimize turbulence, ensuring quiet operation.
4. Fast Response: Short stroke enables quick response and precise regulation.
5. Interchangeable Cv Values: Easily exchangeable for varying flow requirements.
6. Secure Shutoff: Provides reliable sealing for optimal performance.
Dimensions:
