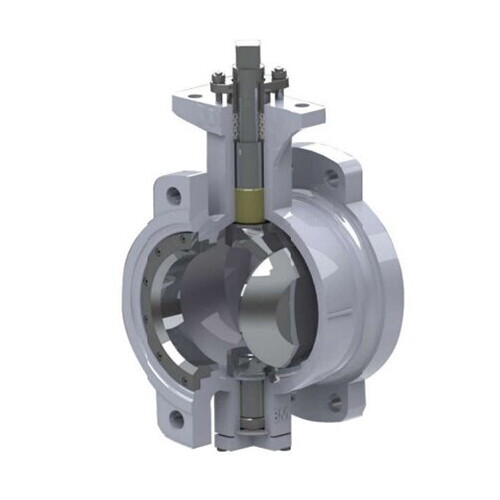

Eccentric Segmented Ball Valve, CF8M, 1-16 Inch, 150-300 LB
Key Specifications / Features
Discover our range of eccentric segmental ball control valves, meticulously manufactured to meet the highest industry standards. Available in sizes ranging from 1 to 16 inches and pressure classes from 150 to 300 LB, these valves offer precise control and reliable performance. Crafted from premium materials such as carbon steel, stainless steel, and alloy steel, they ensure durability and resistance to corrosion. With seat leakage designed to meet ANSI B16.104 Class V standards, our valves are suitable for a wide range of industrial applications.
Request a quote
Detail Information
Product Name: Eccentric Segmented Ball Control Valve
Body Material: ASTM A351 CF8, CF8M, ASTM A217 WC6, WC9, ASTM A216 WCB, WCC
Size Range: 1 Inch - 16 Inch, DN25-DN300
Pressure Rating: Class 150 - 300 LB, PN10 - PN64, 1.0 - 6.4 Mpa
Connection: Flanged, Wafer
Temperature Range: -196℃ to 538℃
Seat Leakage: ANSI B16.104 Class V
Rangeability: 100:1
Flow Characteristic: Approximate Linear
Body Material: ASTM A351 CF8, CF8M, ASTM A217 WC6, WC9, ASTM A216 WCB, WCC
Size Range: 1 Inch - 16 Inch, DN25-DN300
Pressure Rating: Class 150 - 300 LB, PN10 - PN64, 1.0 - 6.4 Mpa
Connection: Flanged, Wafer
Temperature Range: -196℃ to 538℃
Seat Leakage: ANSI B16.104 Class V
Rangeability: 100:1
Flow Characteristic: Approximate Linear
