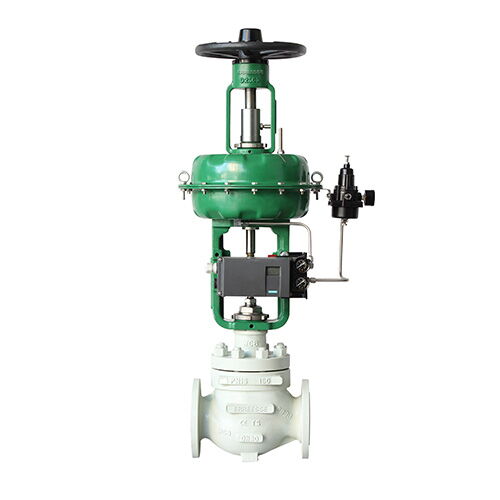

Cage Guided Globe Control Valve, 1-1/2-16 Inch, 150-900 LB

Name: Cage Guided Globe Control Valve, 1-1/2-16 Inch, 150-900 LB
SKU: CNCV-240426-BCV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing our Cage Guided Globe Control Valve, crafted from durable ASTM materials such as A216 WCB, WCC, A217 WC6, WC9, and A105. Engineered to ANSI B16.104 Class IV standards for minimal seat leakage with standard metal seats. This valve boasts a versatile trim featuring partial or integrated cage, a double-seat structure, and cage-guided balanced trim. Available in sizes ranging from 1-1/2 inches to 16 inches (DN40-DN400) and pressure ratings from PN16 to PN160 (Class 150 LB - 900 LB, 1.6-16.0 Mpa). With a wide temperature range from -196℃ to 538℃, connection options include flange or welding, offering adaptability across various applications. Its impressive rangeability of 50:1 and flow characteristics of equal percentage or linear ensure precise control.

Request a quote

Detail Information

Product Name: Cage Guided Globe Control Valve
Body Material: ASTM A216 WCB, WCC, A217 WC6, WC9, ASTM A105
Seat Leakage: ANSI B16.104 CLASS IV (Standard, Metal Seat)
Trim: Partial or Integrated Cage, Double Seat Structure, Cage Guided Balanced Trim
Size Range: 1-1/2 Inch - 16 Inch, DN40-DN400
Pressure Rating: PN16-PN160, Class 150 LB - 900 LB, 1.6-16.0 Mpa
Temperature Range: -196℃ to 538℃
Connection: Flange, Welding
Rangeability: 50:1
Flow Characteristic: Equal Percentage, Linear
