3-Way Motorized Ball Control Valve, ASTM A351 CF8M, 1 Inch

Name: 3-Way Motorized Ball Control Valve, ASTM A351 CF8M, 1 Inch
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading 3-way Motorized Ball Control Valve Manufacturer, we offer precision-engineered valves featuring a reliable electric actuator. Available in brass, stainless steel (SS 304, SS 316), and sizes ranging from 1/2 to 1 inch (DN15-DN25), our valves ensure durability and corrosion resistance. With a pressure rating of PN10 and BSP thread end connections, they provide seamless installation and integration. Ideal for complex fluid control systems, these three-way valves facilitate efficient flow management, enhancing operational efficiency. Perfect for diverse applications, our valves deliver robust performance and long-term reliability, making them the preferred choice for industrial professionals.

Request a quote

Detail Information

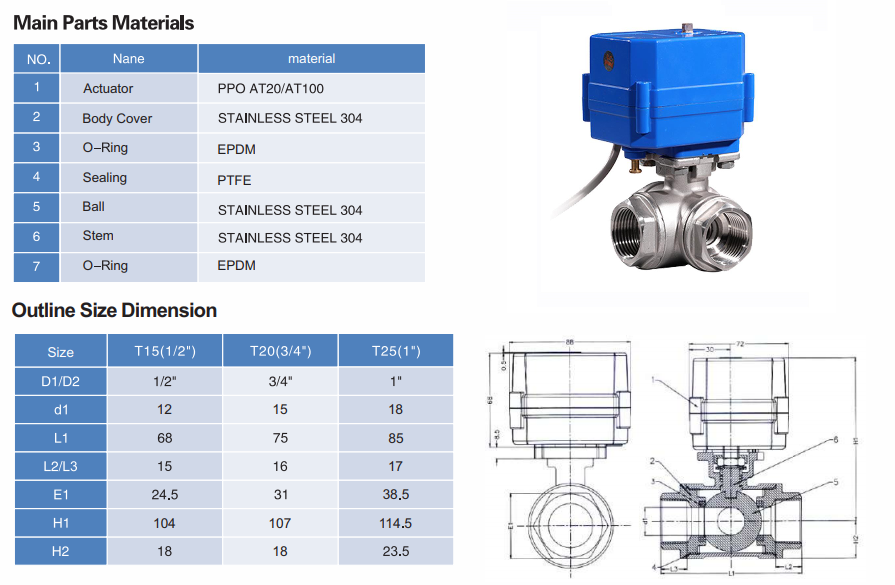

SPECIFICATIONS
Product Name: 3-Way Motorized Ball Control Valve
Size Range: 1/2 Inch - 1 Inch, DN15-DN25
Pressure Rating: PN10, Class 150 LB
Material: Stainless Steel, SS 304, SS 316, Brass
Valve Ball: PVC, UPVC, Brass, Stainless Steel
Actuator Material: Engineering Plastics
Sealing Material: EPDM
Temperature of Media: 2°C to 90°C
Ambient Temperature: -15°C to 50°C
Voltage: AC110V to 230V, DC9 to 24V
End Connection: BSP Thread
