2 Way Pneumatic Ball Control Valve, SS 316, 1/2-3 IN, 600 LB

Name: 2 Way Pneumatic Ball Control Valve, SS 316, 1/2-3 IN, 600 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Introducing the 2 Way Pneumatic Ball Control Valve, built for precision and reliability. Sized from 1/2 inch to 3 inches, it features robust Stainless Steel 316 construction for durability and resistance to corrosion. Operating at PN63 pressure, this valve ensures secure performance in challenging conditions. It includes a Stainless Steel 316 disc and ISO5211 compliant cover flange for seamless integration with pneumatic systems. With connection standards like B2.1 BS21 1973 DIN 259/2999 NPT, it offers versatility across installations. Ideal for the chemical industry, it excels in applications involving acids, chemical controls, drainage, and treatment plants. Featuring PTFE sealing, the valve reliably contains fluids, suitable for a wide range of corrosive substances.

Request a quote

Detail Information

Product Description

Product Name: 2 Way Pneumatic Ball Control Valve
Size Range: 1/2 Inch - 3 Inch, DN15-DN80
Working Pressure: PN63, Class 600 LB
Body Material: Stainless Steel 316
Disc Material: Stainless Steel 316
Cover Flange: ISO 5211
Connection Standard: B2.1 BS21 1973 DIN 259/2999 NPT
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper atthe end of the line, Treatment plants, Stainless Steel Resistant Fluid Types
Sealing: PTFE

Pneumatic Actuator Details

Type: Single acting, Double Acting
Position: 2 Positions
Angle of Rotation: 90°
Protection Class: IP65, IP68
ATEX Protection Class: II 2GDc T4
Working Pressure: 4 to 8 Bar
Working Temperature: -20°C to +80°C
Torque Range: 12Nm to 80 Nm
Body: Aluminium Extrusion
Strok Adjustment: ± 5°
Fluid Control: On/Off, Proportional
Valve Connection: ISO 5211
Accessories Connections: Namur standards

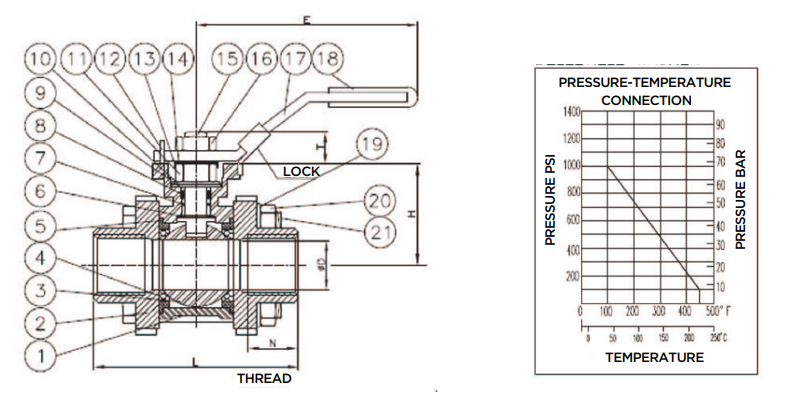

Size		Ø D	L ± 2	H	E ± 3	T	S	Ø D1	L1 ± 2	ISO 5211		N	KV VALUES
DN	INCH	Ø D	L ± 2	H	E ± 3	T	S	Ø D1	L1 ± 2	Ø K1	Ø K2	N	KV VALUES
15	1/2 Inch	15	75	38.0	140	9	9	21.8	70	F03	F04	20.0	9.7
20	3/4 Inch	20	80	47.0	140	9	9	27.2	85	F03	F04	21.0	18.2
25	1 Inch	25	90	57.2	154	11	11	34.0	95	F04	F05	21.0	30.3
32	1-1/4 Inch	32	110	62.5	154	11	11	42.7	110	F04	F05	27.5	49.3
40	1-1/2 Inch	38	120	77.5	184	14	14	48.8	120	F05	F07	26.5	69.2
50	2 Inch	50	162	86.5	184	14	14	61.2	142	F05	F07	31.0	129.7
65	2-1/2 Inch	65	162	108.0	261	17	17	74.0	168	F07	F10	28.0	229.2
80	3 Inch	80	184	115.0	261	17	17	90.0	182	F07	F10	33.5	358.9
100	4 Inch	100	228	141.0	337	22	22	115.6	227	F10	F12	41.0	674.6

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

Can you supply valves with 3.2 certification?

Yes, 3.2 certificates are available at an additional cost. We work with reputable third-party inspection agencies (TPI) such as BV, TUV, SGS, or LR, who will inspect the valves and issue signed certificates provided with the shipment.
