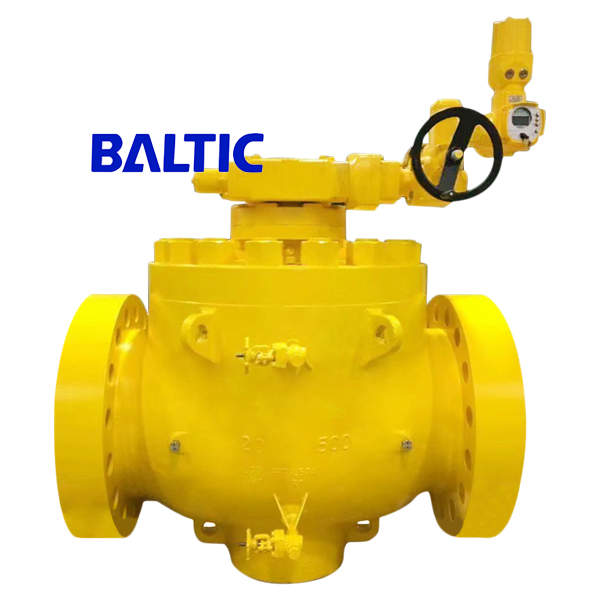

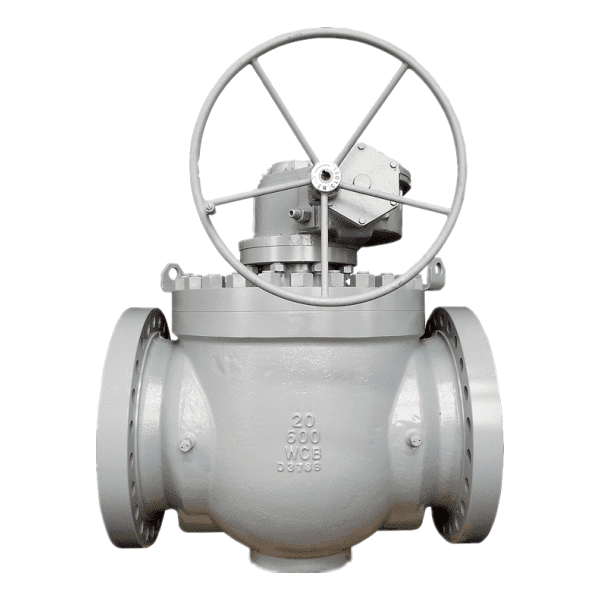

Top Entry Ball Valve, API 6D, WCB, 20 Inch, 600 LB, RF
Model Number: 20BT6RWCB
Key Specifications / Features
Looking for a high-quality Top Entry Trunnion Mounted Ball Valve that meets API 6D standards? Look no further than our 20 inch, 600 LB valve with RF connections and a durable WCB body. This valve is built to last, with A105 + ENP Trim, DEVLON Seat, and Gear Operation. Trust us to provide the reliable valve you need for your industrial applications.
Detail Information
Top Entry Trunnion Mounted Ball Valve, API 6D, 20 inch, 600 LB, RF, WCB Body, A105 + ENP Trim, DEVLON Seat, Gear Operation
Valve Description:
1811030 Trunnion Mounted Ball Valve 20BT6RWCB
Design Standard: API 6D
Structure: Two pieces cast body, Top Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A216 WCB
Trim Material: A105N + ENP, DEVLON Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Top Entry for easy on-line maintenance
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Valve Description:
1811030 Trunnion Mounted Ball Valve 20BT6RWCB
Design Standard: API 6D
Structure: Two pieces cast body, Top Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A216 WCB
Trim Material: A105N + ENP, DEVLON Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Top Entry for easy on-line maintenance
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
