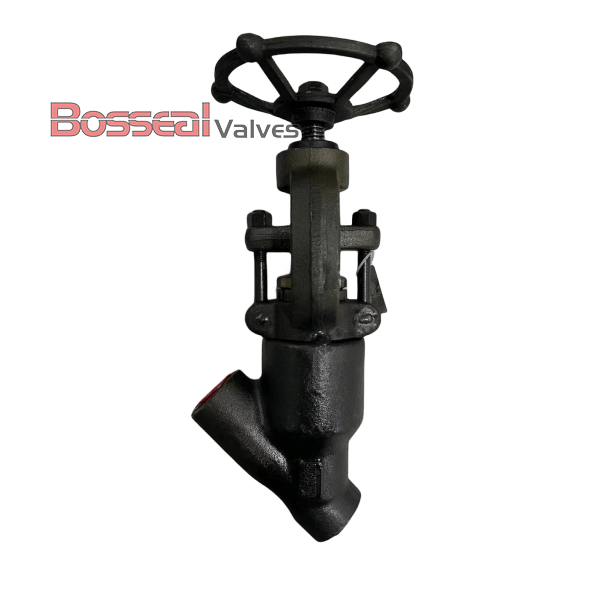

Pressure Seal Bonnet Y Globe Valve, A182 F91, 2 IN, CL1500

Name: Pressure Seal Bonnet Y Globe Valve, A182 F91, 2 IN, CL1500
SKU: 1852044
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading exporter of pressure seal globe valves from China, we offer Y-type valves made from forged steel and ASTM A182 F91 material. Our 2-inch valves are rated ANSI 1500 and comply with API 602 and ASME B16.34 standards. Featuring a pressure seal design, these valves ensure a robust, leak-proof seal under high pressure. The rising stem, operated by a handwheel, provides precise control and durability. Engineered for demanding applications, our globe valves deliver exceptional performance and reliability. Choose us for high-quality pressure seal globe valves tailored to meet your industrial needs.

Request a quote

Detail Information

API 602 Y Globe Valve, Pressure Seal Bonnet, 2 Inch, 1500 LB, A182 F91 Body, BW End.

Valve Description:	1852044 Globe Valve
Design Standard:	API 602, ASME B16.34
Nominal Size:	2 Inch, DN50
Nominal Class:	ANSI Class 1500 LB
Body Material:	ASTM A182 F91, ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F316
Bore Type:	Reduced
End Connection:	BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Operation:	Handwheel
Structure:	Pressure Seal Bonnet, Bolted Bonnet, Welded Bonnet, Bonnetless
Trim Material:	ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Face to Face:	MFG'S
Test and Inspection:	API 598

Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service

Product Line:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
End Connection: BW/SW/NPT
Working Temperature: -29°C - +525°C
Operation: Manual or Actuated
