Bonnetless Y-pattern Globe Valve, 1-1/2 Inch, 1500 LB, F316
Model Number: 1852043
Key Specifications / Features

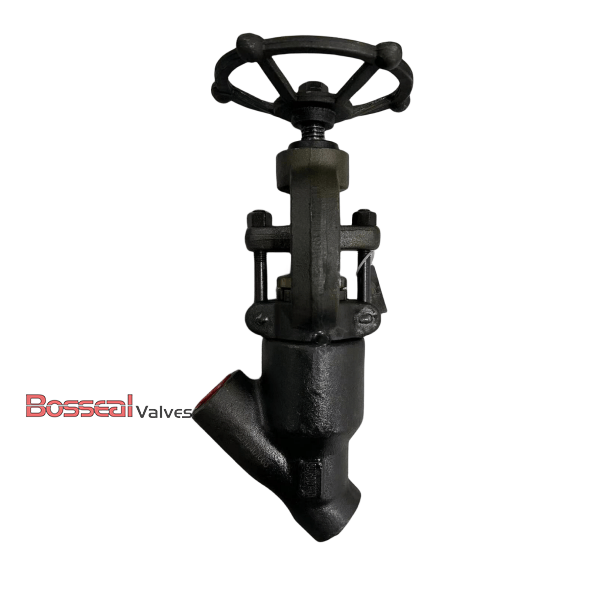

Our factory in China specializes in Y-pattern globe valves, built to the highest standards of ASTM A182 F316, ASME B16.34, and API 602. These 1-1/2 inch, Class 1500 LB valves are designed without a bonnet for a streamlined profile and feature butt weld ends for secure, durable connections. Operated by a handwheel, they offer precise control and reliable performance. Engineered for demanding applications, our valves combine exceptional durability with ease of use, making them an ideal choice for high-pressure environments. Trust us for high-quality Y-pattern globe valves tailored to meet your industrial requirements.
Detail Information
1-1/2 Inch Y-pattren Globe Valve, ASME B16.34, 1-1/2 Inch, 1500 LB, A182 F316 Body, BW Ends.
Valve Description:
1852043 Globe Valve
Design Standard: ASME B16.34, API 602
Body Material: ASTM A182 F316, ASTM A182 F22, ASTM A182 F11, ASTM A105N, ASTM A182 F91
Nominal Size: 1-1/2 Inch
Nominal Class: Class 1500 LB
Structure: Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet, Bonnetless
Bore Type: Reduced Bore
Face to Face: MFG'S
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service
Product Portfolio:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Operation: Manual or Actuated
Working Temperature: -29°C to +525°C
End Connection: BW/SW/NPT
Valve Description:
1852043 Globe Valve
Design Standard: ASME B16.34, API 602
Body Material: ASTM A182 F316, ASTM A182 F22, ASTM A182 F11, ASTM A105N, ASTM A182 F91
Nominal Size: 1-1/2 Inch
Nominal Class: Class 1500 LB
Structure: Welded Bonnet, Bolted Bonnet, Pressure Seal Bonnet, Bonnetless
Bore Type: Reduced Bore
Face to Face: MFG'S
Operation: Handwheel
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Test and Inspection: API 598
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service
Product Portfolio:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2-2 Inch (DN15-DN50)
Pressure Range: 800-4500 LB
Operation: Manual or Actuated
Working Temperature: -29°C to +525°C
End Connection: BW/SW/NPT
